Dual-Energy 4-Phase CT Scan in Primary Hyperparathyroidism

D. Lau, H. Yang and P.L. Kei
American Journal of Neuroradiology August 2013, 34 (8) E91-E93; DOI: https://doi.org/10.3174/ajnr.A3657
D. Lau
aDepartment of Diagnostic Radiology Singapore General Hospital Singapore
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
H. Yang
aDepartment of Diagnostic Radiology Singapore General Hospital Singapore
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
P.L. Kei
aDepartment of Diagnostic Radiology Singapore General Hospital Singapore
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • Article
  • Figures & Data
  • Info & Metrics
  • Responses
  • References
  • PDF
Loading

We read with interest the article by Gafton et al1 published in 2012. The authors illustrated the use of a dual-phase CT protocol for the enhancement characterization of parathyroid lesions and suggested the elimination of precontrast and delayed scan phases from 4D CT to reduce radiation exposure. In this letter, we describe the alternative approach of our institution to 4D CT. Our modified 4D CT protocol uses virtual noncontrast (VNC) images obtained from dual-energy CT-reconstructed venous-enhanced images to replace true precontrast scans. This process allows a complete examination of the contrast enhancement and washout characteristics of parathyroid adenomas on 4D CT, without reducing the number of scan phases.

Here we present a 57-year-old female patient who was suspected of having primary hyperparathyroidism (PHPT) and was scanned by using our modified 4D CT protocol. The institutional review board approval was waived for this dose-saving study. The patient was referred for neck imaging using our modified protocol after negative technetium Tc99m-sestamibi scintigraphy findings, despite the presence of elevated total serum calcium and parathyroid hormone levels. A modified 4-phase CT scan was obtained, with a dual-energy scan acquired during the venous phase.

Image Acquisition and Processing

All scans were obtained with the patient in the supine position by using a 64-section dual-source CT scanner (Somatom Definition; Siemens, Erlangen, Germany) to acquire contiguous axial images from the lower margin of the mandible to the level of the inferior aortic arch. Intravenous injection of 50 mL of iodinated contrast material (iohexol, Omnipaque, 350 mg/mL; GE Healthcare, Milwaukee, Wisconsin), followed by 50 mL of saline chaser bolus, was administered via the right antecubital vein at a rate of 3 mL/s by using a 20-gauge catheter. Scan acquisition in the arterial, dual-energy venous, and delayed phases was performed at 25, 55, and 85 seconds, respectively. Single-energy CT in the arterial and delayed phases was performed by using a collimation of 16 × 0.75 mm and a pitch value of 1 at 120 kV(peak)/62 mAs, whereas dual-energy CT was performed in the venous phase by using a 32 × 0.6 mm collimation, a pitch value of 1, and tube current settings of 80 kVp/210 mAs (tube A) and 140 kVp/50 mAs (tube B). Both single- and dual-energy CT scans were obtained with a gantry rotation speed of 0.8 seconds, with on-line tube current modulation (Care Dose 4D; Siemens). The estimated CT dose index and dose-length product were recorded for the scan session.

All images were subsequently reconstructed into axial and sagittal views with a section thickness of 3 mm and an increment of 3 mm, with an FOV of 20 cm and a 512 × 512 matrix, by using a B30f kernel for single-energy CT and a D30f kernel for dual-energy CT on a syngo MultiModality Workplace (MMWP), Version VE 31A (Siemens). The dual-energy venous raw data from both detectors were reconstructed into 80 kV(peak), 140 kVp, and weighted average 120 kVp images (30% of the image information was derived from the 80 kVp image and 70% from the 140 kVp image). Further postprocessing to the dual-energy venous dataset by using the Liver Virtual Unenhanced application on the syngo MMWP was performed to generate the iodine map from the individual CT voxels, as well as the subtraction of the iodine signal from the dataset to produce a VNC-enhanced image.

Image Analysis

All images were analyzed on syngo MMWP. Circular regions of interest were defined and positioned within the center of the parathyroid adenoma to measure the contrast attenuation values. The size was chosen as approximately 5.0 mm2 to cover almost the entire lesion but avoiding beam-hardening and partial volume artifacts at the borders of the lesion. The mean ± SD values in Hounsfield units measured from the respective images acquired from each scan phase were recorded. Results from the modified 4D CT scan are shown in Figs 1⇓–3. A subsequent directed parathyroidectomy revealed the presence of a parathyroid adenoma (Figs 1⇓–3).

Fig 1.
  • Download figure
  • Open in new tab
  • Download powerpoint
Fig 1.

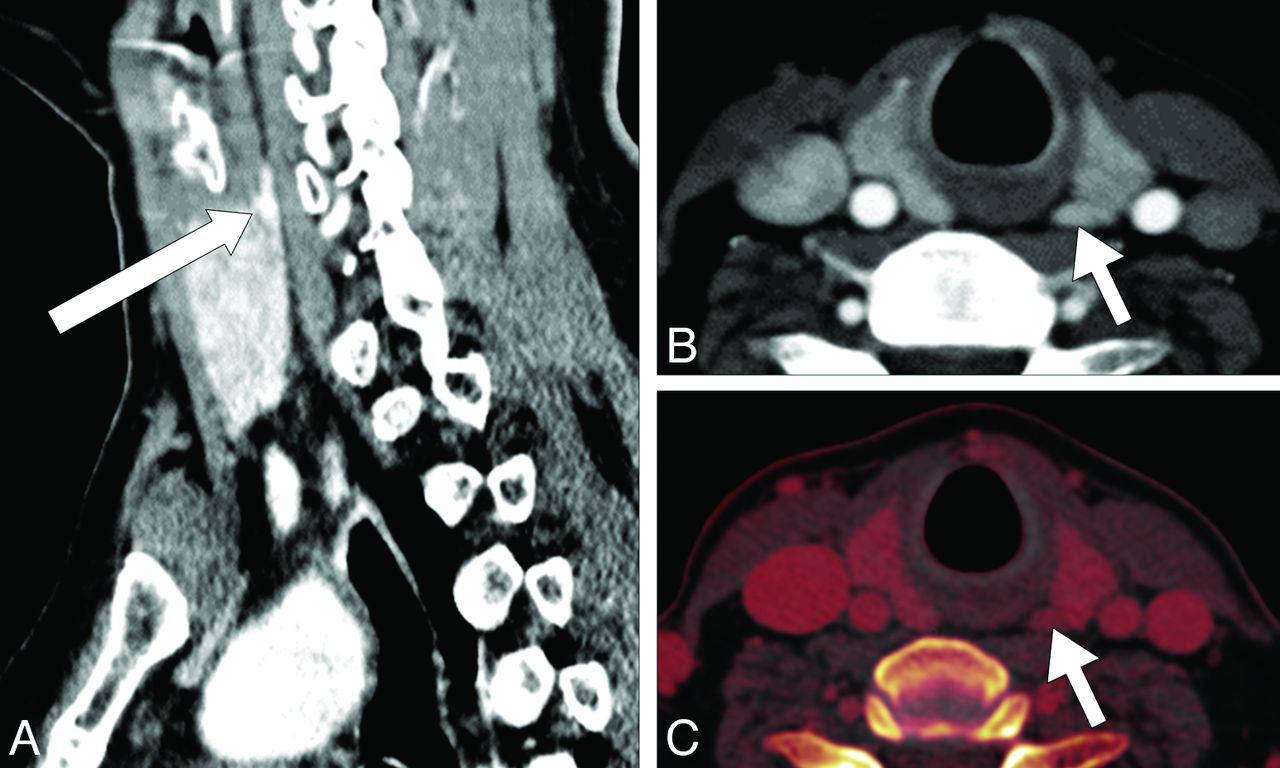

CT examination of the patient by using our modified 4D CT protocol shows a 6 × 3 mm nodular parathyroid adenoma (arrows) lying in the superomedial aspect, posterior to the left thyroid lobe in both sagittal (A) and axial (B) sections. The iodine overlay image (acquired by using dual-energy CT in the venous phase), also obtained by using this protocol, allows the measurement of iodine concentration in the tissues, to differentiate between the parathyroid adenoma and surrounding thyroid tissues (C). Directed parathyroidectomy and histopathologic examination, thereafter, confirmed the presence of a parathyroid adenoma.

Fig 2.
  • Download figure
  • Open in new tab
  • Download powerpoint
Fig 2.

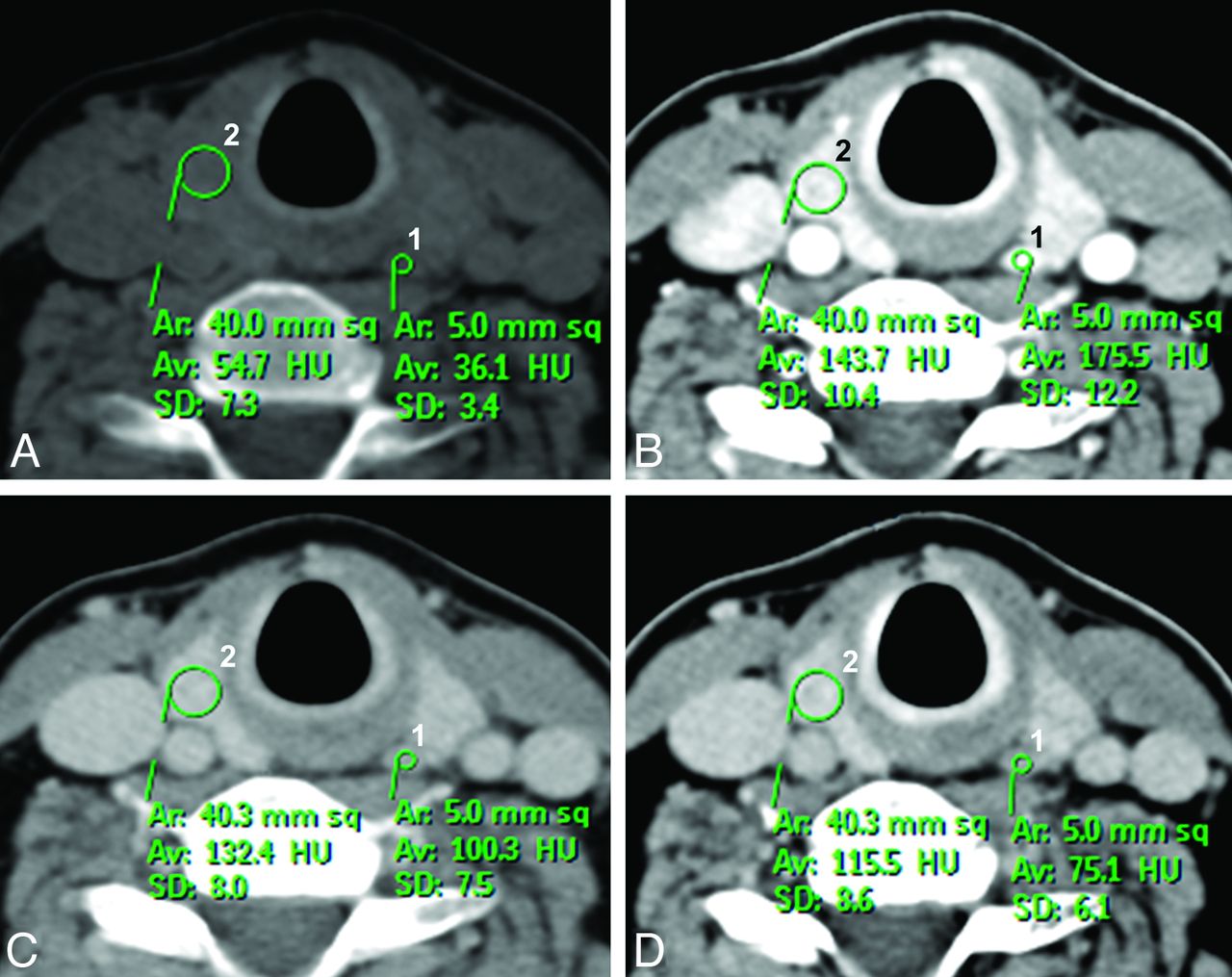

Modified 4D CT by using our suggested protocol demonstrates the enhancement characteristics of a hyperplastic parathyroid adenoma (region of interest 1) and an adjacent soft-tissue structure (ie, a normal-functioning thyroid gland) (region of interest 2). Contrast-enhancement analysis on the parathyroid adenoma shows an attenuation value of 36.1 HU on the virtual noncontrast scan (A), which rapidly enhanced to 175.5 HU in the arterial phase (B), and immediately decreased to 100.3 HU in the dual-energy venous phase (C) and 75.1 HU in the delayed (D) image. The parathyroid adenoma can be easily distinguished from the surrounding soft tissues on the basis of its characteristic “rapid contrast uptake and washout” feature.

Fig 3.
  • Download figure
  • Open in new tab
  • Download powerpoint
Fig 3.

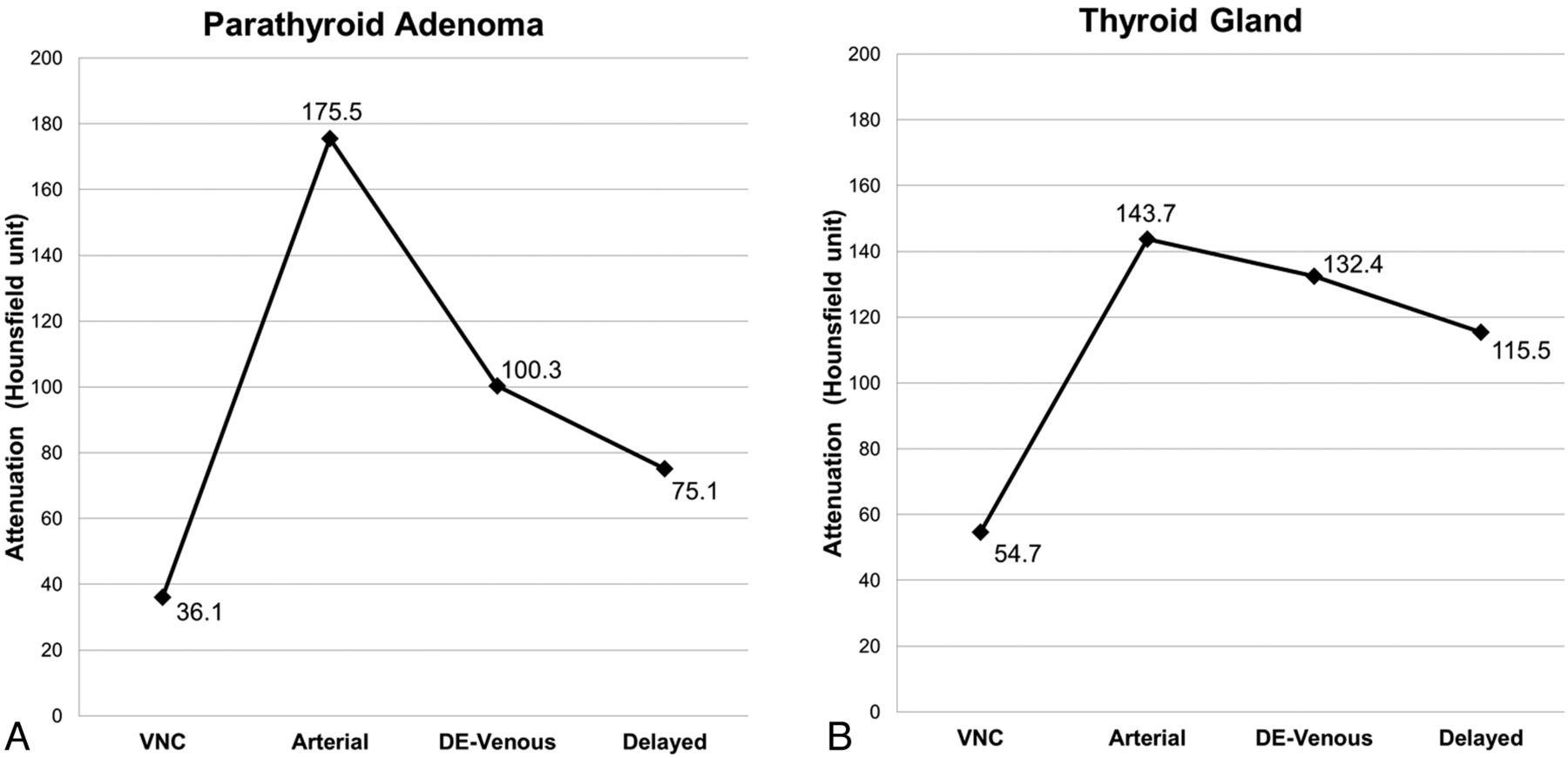

Attenuation plots show the characteristic dynamic contrast-enhancement pattern of the parathyroid adenoma (ie, rapid contrast uptake and washout, (A) and a normal-functioning right thyroid gland (B) measured from the same scans obtained from the patient diagnosed with PHPT by using our modified 4D CT protocol. The mean Hounsfield unit attenuations of the imaged structures in the VNC (reconstructed from the dual-energy venous [DE-venous]), arterial (by using bolus tracking), DE-venous (55 seconds), and delayed (85 seconds) phases were measured by using region-of-interest analysis as shown in Fig 2.

Our findings suggest that VNC images could potentially replace true precontrast images to provide an accurate differentiation of the parathyroid adenoma from surrounding normal tissues, by characterizing its contrast enhancement with time. It has been reported in the literature that VNC images can provide a good approximation of the attenuation values similar to that in true precontrast images and, accordingly, lower radiation exposure in patients by omitting the need for precontrast scanning.2 The resulting images obtained by using our modified protocol provided a reasonably good diagnostic anatomic localization of the parathyroid adenoma (Fig 1). A complete 4-phase examination of the enhancement characteristics of the parathyroid adenoma (rapid contrast uptake and washout) was feasible (Figs 2 and 3), with an estimated reduction in the overall radiation exposure by approximately 20% (Tables 1 and 2). In addition, with appropriate software (which we do not have), measurement of the tissue iodine concentration (in milligrams/deciliter) is also possible on the iodine overlay image. This has potentially more useful implications in head and neck imaging than conventional 4D CT because it allows the radiologist to determine whether the lesion is arising from thyroid tissues or is extrathyroidal in nature.

View this table:
  • View inline
  • View popup
Table 1:

Standard 4D CT protocol in another patienta

View this table:
  • View inline
  • View popup
Table 2:

Modified 4D CT protocol in our current patienta

In our experience, provision of images from all 4 phases, including the precontrast and delayed scans, is helpful in determining the baseline attenuation value and dynamic changes with time. Various authors have proposed modified 4D CT methods, mostly by eliminating 1 or 2 phases from the scan technique.1,3 These may reduce the diagnostic confidence of the reporter. We feel that the provision of 4 phases is crucial for the localization of small or ectopic parathyroid adenoma or lesions situated in crowded structures in the neck or other distal locations such as the mediastinum.4,5

However, one drawback in using this modified technique is the subtraction of iodine attenuation from the thyroid glands on VNC images, thereby possibly negating the potential benefit of this modified 4D CT study. Admittedly, a true precontrast scan does confer additional information of soft-tissue contrast between the parathyroid adenoma and surrounding soft tissue (thyroid tissue is inherently denser compared with adenomatous tissue, due to its high iodine concentration); this, however, comes with added radiation burden. In the authors' experience, careful analysis of the VNC, arterial, venous, and delay phases can help in separating parathyroid adenoma tissues from normal surrounding soft tissues (such as the thyroid gland). In addition, for patients with PHPT and concurrent thyroiditis, in which the attenuation of the thyroid gland is low to begin with, having an iodine overlay map allows the quantification of iodine concentration of a particular lesion, enabling accurate lesion characterization.

In conclusion, we believe our modified dual-energy protocol can allow reduction in radiation exposure during 4D CT parathyroid scanning without compromising the need for studying the enhancement characteristics of these lesions. Nevertheless, further studies should be conducted to validate the real clinical impact of our suggested protocol for diagnosing PHPT in a larger group of patients.
