Research ArticleNeurointervention
Open Access

Risks of Undersizing Stent Retriever Length Relative to Thrombus Length in Patients with Acute Ischemic Stroke

N.F. Belachew, T. Dobrocky, T.R. Meinel, A. Hakim, J. Vynckier, M. Arnold, D.J. Seiffge, R. Wiest, E.I. Piechowiak, U. Fischer, J. Gralla, P. Mordasini and J. Kaesmacher
American Journal of Neuroradiology October 2021, DOI: https://doi.org/10.3174/ajnr.A7313
N.F. Belachew
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for N.F. Belachew
T. Dobrocky
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for T. Dobrocky
T.R. Meinel
bNeurology (T.R.M., J.V., M.A., D.J.S., U.F.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for T.R. Meinel
A. Hakim
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for A. Hakim
J. Vynckier
bNeurology (T.R.M., J.V., M.A., D.J.S., U.F.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for J. Vynckier
M. Arnold
bNeurology (T.R.M., J.V., M.A., D.J.S., U.F.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for M. Arnold
D.J. Seiffge
bNeurology (T.R.M., J.V., M.A., D.J.S., U.F.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for D.J. Seiffge
R. Wiest
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for R. Wiest
E.I. Piechowiak
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for E.I. Piechowiak
U. Fischer
bNeurology (T.R.M., J.V., M.A., D.J.S., U.F.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for U. Fischer
J. Gralla
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for J. Gralla
P. Mordasini
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for P. Mordasini
J. Kaesmacher
aFrom the Departments of Diagnostic and Interventional Neuroradiology (N.F.B., T.D., A.H., R.W., E.I.P., J.G., P.M., J.K.)
cDiagnostic, Interventional and Pediatric Radiology (J.K.), Inselspital, Bern University Hospital, and University of Bern, Bern, Switzerland
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for J. Kaesmacher
  • Article
  • Figures & Data
  • Supplemental
  • Info & Metrics
  • Responses
  • References
  • PDF
Loading

Abstract

BACKGROUND AND PURPOSE: Results regarding the association of thrombus length, stent retriever length, and recanalization success in patients with acute ischemic stroke are inconsistent. We hypothesized that the ratio of thrombus length to stent retriever length may be of particular relevance.

MATERIALS AND METHODS: Patients with acute ischemic stroke undergoing stent retriever thrombectomy at our institution between January 2010 and December 2018 were reviewed retrospectively. Thrombus length was assessed by measuring the susceptibility vessel sign on SWI using a 1.5T or 3T MR imaging scanner. Multivariable logistic regression models were used to determine the association between thrombus length, stent retriever length, and thrombus length/stent retriever length ratio with first-pass recanalization, overall recanalization, and embolization in new territories. Results are shown as adjusted ORs with 95% CIs. Additional mediation analyses were performed to test for indirect effects on first-pass recanalization and overall recanalization success.

RESULTS: The main analysis included 418 patients (mean age, 74.9 years). Increasing stent retriever length was associated with first-pass recanalization. Decreasing thrombus length and lower thrombus length/stent retriever length ratios were associated with first-pass recanalization and overall recanalization. Thrombus length and stent retriever length showed no association with first-pass recanalization or overall recanalization once thrombus length/stent retriever length ratio was factored in, while thrombus length/stent retriever length ratio remained a significant factor in both models (adjusted OR, 0.316 [95% CI, 0.112–0.892]; P = .030 and adjusted OR, = 0.366 [95% CI, 0.194–0.689]; P = .002). Mediation analyses showed that decreasing thrombus length and increasing stent retriever length had a significant indirect effect on first-pass recanalization mediated through thrombus length/stent retriever length ratio. The only parameter associated with embolization in new territories was an increasing thrombus length/stent retriever length ratio (adjusted OR, 5.079 [95% CI, 1.332–19.362]; P = .017).

CONCLUSIONS: Information about thrombus and stent length is more valuable when combined. High thrombus length/stent retriever length ratios, which may raise the risk of unsuccessful recanalization and embolization in new territories, should be avoided by adapting stent retriever selection to thrombus length whenever possible.

ABBREVIATIONS:

aOR
adjusted OR
ENT
embolization into unaffected (new) territories
eTICI
expanded TICI
FP
first-pass
FPR
first-pass recanalization
SL
stent retriever length
SVS
susceptibility vessel sign
TL
thrombus length

Increasing thrombus size has a negative impact on the efficacy of intravenous thrombolysis in patients with acute ischemic stroke.1 It is uncertain whether this also holds true for recanalization after mechanical thrombectomy. Whereas some studies have found no association,2⇓-4 others suggest that the likelihood of successful recanalization after mechanical thrombectomy also decreases with increasing thrombus size.5⇓⇓-8 Opinions are also divided on whether stent retriever size plays a role in this context.9⇓-11 We hypothesized that recanalization success is predominantly influenced by the thrombus-to-stent retriever length ratio (TL/SL), which ultimately affects clinical outcome. Therefore, our goal was to evaluate the direct and indirect influence of thrombus length (TL), stent retriever length (SL), and TL/SL on first-pass recanalization (FPR), overall recanalization, and the risk of embolization in previously unaffected (new) territories (ENT).

MATERIALS AND METHODS

Inclusion Criteria

We conducted a retrospective post hoc analysis of patients with acute ischemic stroke who presented to Bern University Hospital for mechanical thrombectomy. The clinical and radiologic data presented in this study were gathered by manual review of patients with acute ischemic stroke who underwent mechanical thrombectomy at our hospital between January 2010 and December 2018. The inclusion criteria were as follows: 1) a final clinical diagnosis of acute ischemic stroke; 2) admission MR imaging with SWI available; 3) susceptibility vessel sign (SVS) apparent on SWI; 4) occlusion of at least one intracranial artery on angiography; and 5) the patient having undergone stent retriever thrombectomy. SWI quality was classified as “poor” if the SVS was not assessable due to major artifacts. If the thrombus was masked because of its proximity to the skull base or overlaid by other pathologies (eg, hemorrhage), SVS was considered “technically undeterminable.” Patients with poor-quality SWI or technically undeterminable SVS status were excluded.

Most patients with stroke admitted to our institution are primarily scanned using MR imaging. However, the final decision on whether to perform MR imaging or CT is made by the neuroradiologists and neurologists in charge on a case-by-case basis depending on clinical aspects and contraindications. This study was approved by the local ethics committee (Bernese/Swiss Stroke Registry: Kantonale Ethikkommission für die Forschung Bern, Bern, Switzerland, amendment access number: 231/2014 and BEYOND-SWIFT registry, access number: 2018–00766). Patients gave written or oral consent for the use of their data for research. Before January 1, 2015, the need for consent was waived in accordance with regulations of the Swiss law and the local ethics committee.

Data Collection

We collected information on demographics, baseline characteristics, and clinical data, such as age, sex, history of stroke, medication before acute ischemic stroke (antiplatelet therapy, anticoagulants, statins), and documented cardiovascular risk factors such as hypertension, diabetes mellitus, dyslipidemia, and smoking habits. Furthermore, we recorded the following admission data: systolic and diastolic blood pressure, glucose levels, NIHSS score, and stroke subtypes according to Trial of Org 10172 in acute stroke treatment (TOAST) classification. Moreover, IV thrombolysis before imaging (transfer patients) and before mechanical thrombectomy as well as time from symptom onset/last seen well to admission and to mechanical thrombectomy and time from groin puncture to recanalization were documented.

Technical Information: MR Imaging

Imaging was performed on a 1.5T or 3T MR imaging unit (1.5T: Magnetom Avanto or Magnetom Aera; 3T: Magnetom Verio; Siemens). SWI using the 1.5T scanners was performed with the following parameters: TR, 49 ms; TE, 40 ms; flip angle, 15.0°; section thickness, 1.6, 1.8, or 2.0 mm; and intersection gap, 0 mm. 3T SWI was performed with the following parameters: TR, 27 ms; TE, 20 ms; flip angle, 15.0°; section thickness, 2.0 mm; and intersection gap, 0 mm.

Imaging Analysis

Naggara et al12 have shown excellent correlation between TL as measured on T2* gradient-echo sequences and those determined by DSA. However, SWI has proved to be superior to T2* gradient-echo sequences for evaluating the SVS.13 The presence and length of the SVS were evaluated retrospectively by 1 independent neuroradiologist (N.F.B.) with 5 years of experience who was blinded to all outcome parameters and had no role in patient treatment. SWI was classified as SVS+ if a distinct signal loss corresponding to an acutely occluded, symptomatic intracranial artery could be identified regardless of how its diameter compared with that of the contralateral artery. TL was measured in a multiplanar SWI reconstruction along the axis of the occluded vessel and recorded in millimeters (Figs 1 and 2). If the SVS was discontinuous (ie, a fractured or heterogeneous clot), the visible sections of the thrombus demonstrating a circumscribed signal loss on SWI were measured and the total was calculated. MR imaging field strength and time from symptom onset to imaging were documented for each case. Additionally, the DWI-ASPECTS was evaluated.

FIG 1.
  • Download figure
  • Open in new tab
  • Download powerpoint

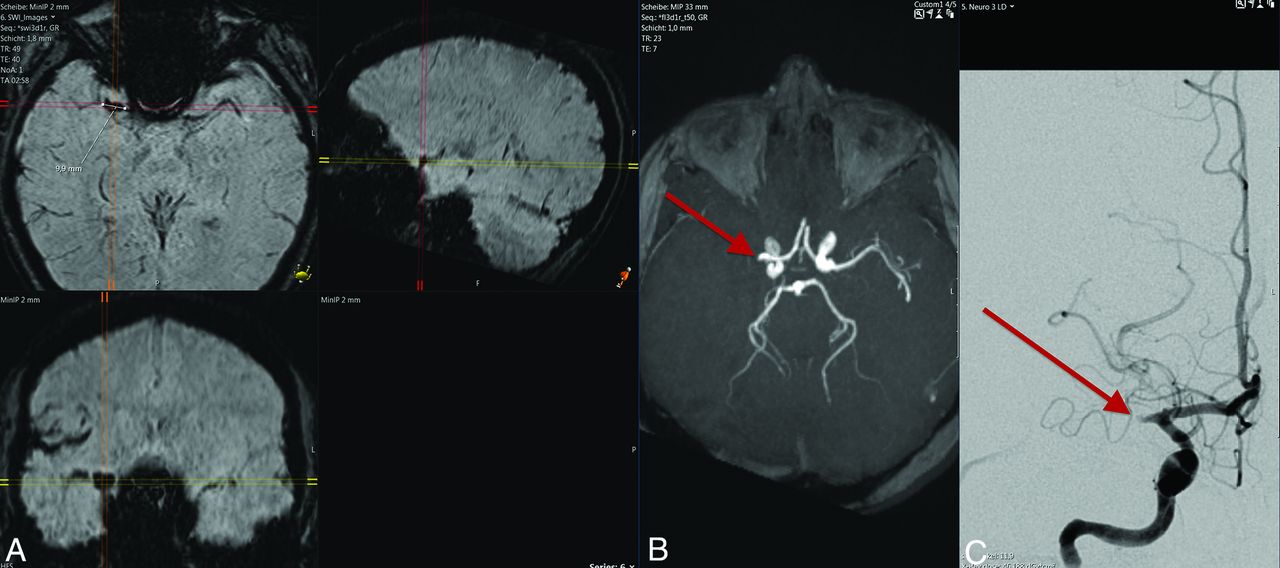

FIG 1.

A male patient with acute ischemic stroke after occlusion of the right MCA main trunk (M1-segment). The occlusive thrombus can be seen on SWI (A) as a circumscribed loss of signal along the main trunk of the MCA. Corresponding images of the arterial TOF sequence (B) and DSA (C) show the same vessel occlusion. Thrombus measurement was performed on multiplanar SWI reconstruction along the longitudinal axis of the occluded vessel (C). The red arrow points to the proximal end of the vessel occlusion on arterial TOF and DSA.

FIG 2.
  • Download figure
  • Open in new tab
  • Download powerpoint

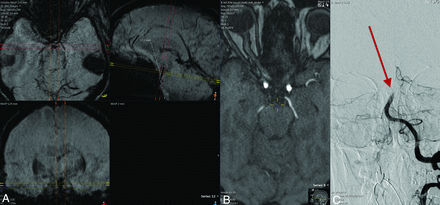

FIG 2.

A patient with acute ischemic stroke after occlusion of the basilar artery. The occlusive thrombus can be seen on SWI (A) as a circumscribed loss of signal along the basilar artery. Corresponding images of the arterial TOF sequence (B) and DSA (C) show the same vessel occlusion. The yellow crosshairs are centered on the middle portion of the vessel occlusion on arterial TOF (B). Thrombus measurement was performed on multiplanar SWI reconstruction along the longitudinal axis of the occluded vessel (C). The red arrow points to the proximal end of the vessel occlusion on digital subtraction angiography.

DSA and Stent Retriever Thrombectomy

The primary site of occlusion was determined on the basis of conventional angiography findings. Tandem occlusions were also documented. Stent retriever thrombectomy was performed by experienced interventional neuroradiologists according to the current clinical practice guidelines and institutional protocols. The ex vivo length of the first-line stent retriever device as provided by the manufacturer as well as the total number of passes performed during mechanical thrombectomy were recorded. The expanded TICI (eTICI) score14 was documented after the first pass and at the end of mechanical thrombectomy. Successful FPR and overall recanalization were defined as an eTICI of 2b or better. DSA was screened for ENT and for peri-interventional complications (vasospasm, dissection, and perforation) by a research fellow with 3 years of experience (J.K.). SL was used to calculate the TL/SL. In addition, all patients were categorized binarily as TL>SL if TL was longer than SL and TL≤SL if TL was not longer than SL. The first-line endovascular treatment technique was categorized as follows: 1) stent retriever alone, 2) stent retriever with a balloon-guided catheter, 3) stent retriever with contact aspiration, or 4) stent retriever with both contact aspiration and a balloon-guided catheter.

Outcome

The NIHSS was evaluated by a neuroradiologist 24 hours after treatment. Mortality and favorable outcome 90 days after treatment were assessed according to the mRS during clinical follow-up by a neurologist or a study nurse. Patients were considered functionally independent if the mRS was ≤2 90 days after treatment. Symptomatic intracranial hemorrhage within 48 hours after stent retriever thrombectomy was assessed according to the European Cooperative Acute Stroke Study (ECASS II).15

Statistical Analysis

Data were analyzed using SPSS Statistics software (Version 25.0; IBM). Continuous variables were compared using the Mann-Whitney U test; and categoric variables, with the χ2 test. Multivariable binary logistic regression analyses were performed to determine the association between TL, SL, and TL/SL with FPR, overall recanalization, and ENT. Adjustment was made for all cofactors with P < .150 as well as additional cofactors that are known or suspected to influence the variables of interest (ie, age, sex, bridging therapy, stroke subtype, symptomatic intracerebral hemorrhage). Mediation analyses were performed to test the indirect effects of TL and SL on FPR and overall recanalization after adjusting for age, sex, previous stroke, primary site of occlusion, stroke subtype, tandem occlusion, bridging thrombolysis, and first-line endovascular treatment technique. Results with 2-tailed P values < .05 were considered statistically significant and are shown as median (interquartile range, 25%–75%), median comparisons with respective P values, or adjusted OR (aOR) with 95% CIs.

RESULTS

Between January 2010 and December 2018, at Bern University Hospital, 1317 patients underwent endovascular treatment for acute ischemic stroke; 676 underwent MR imaging on admission. SWI was performed in 624 of those cases. A further 168 patients were excluded due either to poor-quality SWI, technically undeterminable SVS status, or absence of SVS. A stent retriever device was used 422 times alone or in combination with another device or devices among the remaining cases as part of the first-line retrieval technique; stent size was documented in 418 of them. The Online Supplemental Data outline the patient-selection process. On average, TL was 14 mm (10–20 mm), while SL was 20 mm (20–30 mm). In 11 patients, TL was >40 mm and hence exceeded the longest stents available. Online Supplemental Tables 1 and 2 show all the results for first-pass (FP) recanalizers versus non-FP recanalizers. The Online Supplemental Data list all stent retriever devices used in this study.

Association between Thrombus-to-Stent Size Ratio and First-Pass Recanalization

TL was significantly longer for non-FP recanalizers than for FP recanalizers (15  versus 13 mm, P = .013), whereas SL was significantly shorter for non-FP recanalizers than for FP recanalizers (20  versus 20 mm, P = .003). TL exceeded the length of the chosen stent more frequently in non-FP recanalizers than in FP recanalizers (TL>SL: 20.2% [n = 33/163] versus 12.0% [n = 31/259], P = .018). TL/SL was greater for non-FP recanalizers than for FP recanalizers (0.71 versus 0.55, P = .000). A subgroup analysis showed a first-pass recanalization rate of 36.4% (n = 4/11) when TL exceeded the longest stents available (>40 mm), which was significantly lower than the overall FPR rate of 61.4% (n = 259/422). In 3 separate multivariate binary regression models, decreasing TL and TL/SL (TL: aOR, 0.955 [95% CI, 0.930–0.981]; P = .001; TL/SL: aOR, 0.296 [95% CI, 0.162–0.543]; P = .000), as well as increasing SL (aOR, 1.046 [95% CI, 1.016–1.077]; P = .002) were associated with FPR after adjusting for all cofactors with P < .15 (Online Supplemental Table 1) as well as for age, sex, previous stroke, stroke subtype, bridging therapy, primary site of occlusion, tandem occlusion, and first-line endovascular treatment technique. TL and SL showed no significant association with FPR once the TL/SL was factored in (TL: aOR, 0.996 [95% CI, 0.950–1.045], P = .885; SL: aOR, 1.029 [95% CI, 0.998–1.061], P = .070), whereas decreasing TL/SL remained significantly associated with FPR (TL/SL after including TL: aOR, 0.316 [95% CI, 0.112–0.892], P = .030; TL/SL after including SL: aOR, 0.366 [95% CI, 0.194–0.689]; P = .002). The distribution of first-pass eTICI according to TL/SL quartiles is visualized in Fig 3.

FIG 3.
  • Download figure
  • Open in new tab
  • Download powerpoint

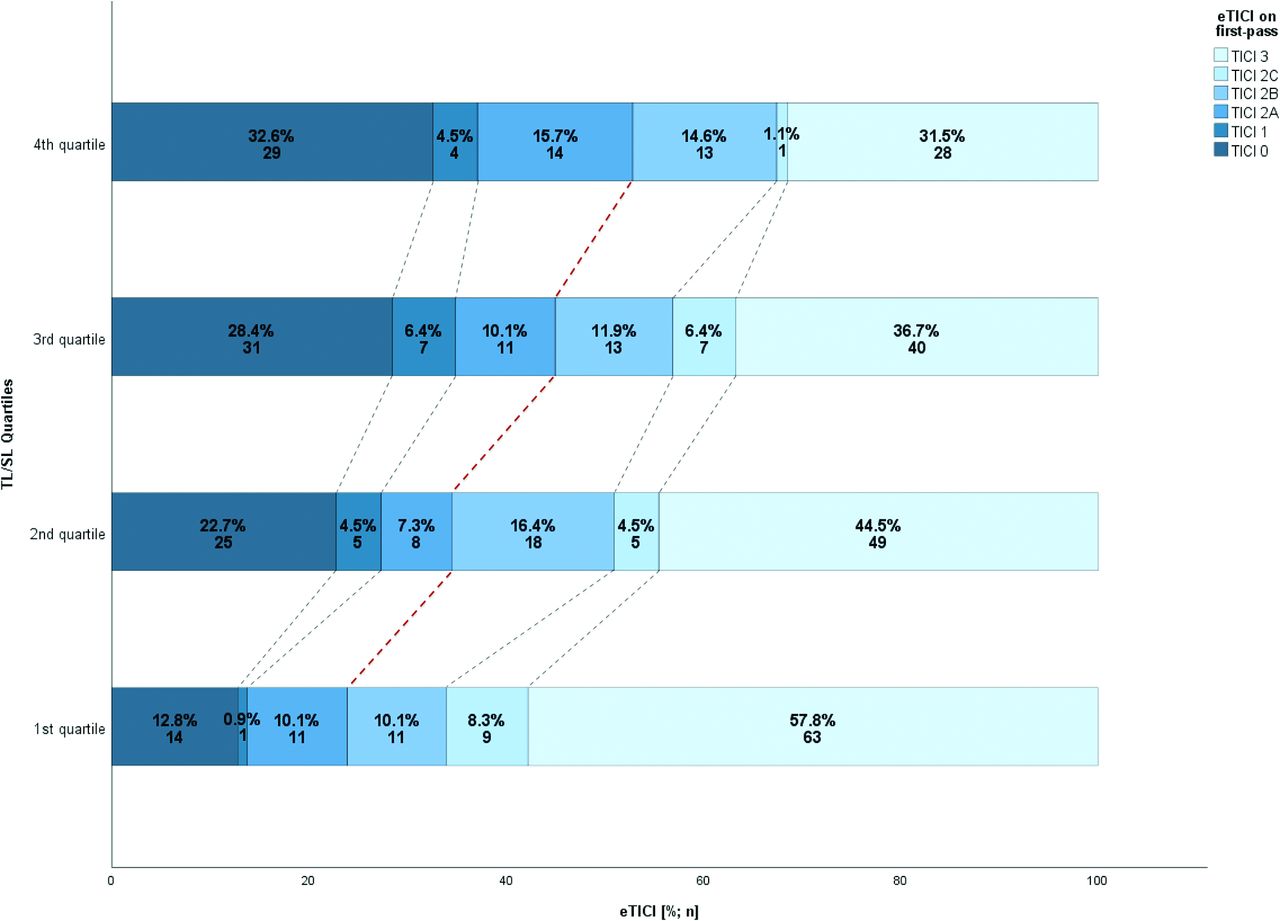

FIG 3.

First-pass eTICI distribution according to TL/SL quartiles (P = .004). The quartile limits are as follows: 0.25-quartile = 0.425; 0.5-quartile = 0.600; 0.75-quartile = 0.900. The black and red dotted lines mark the eTICI margins. The red dotted line also marks the threshold for successful recanalization defined as eTICI ≥ 2B.

The Online Supplemental Data illustrate the adjusted probabilities of achieving FPR depending on the TL/SL. A sensitivity analysis with FPR defined as TICI 3 on first pass did not change this observation (Online Supplemental Data). A subgroup analysis exclusively examining mechanical thrombectomies performed with Solitaire (Medtronic) stents of 4-mm diameter (Online Supplemental Data) confirmed that these findings were independent of stent diameter or stent design.

On mediation analysis, decreasing TL showed no direct effect on FPR (aOR, −0.006 [95% CI, −0.046 to 0.035]; P = .784), but a significant and positive indirect effect on FPR mediated through TL/SL was observed (effect, 0.046 [95% bootstrap CI, 0.011–0.096]; P < .05). In another mediation analysis, increasing SL showed no direct effect on FPR (aOR, 0.026 [95% CI, −0.002 to 0.083]; P = .073), but it had a significant and positive indirect effect on FPR mediated through SL/TL (effect, 0.018 [95% bootstrap CI, 0.004–0.037]; P < .05). Further subgroup analyses examining the impact of favorable-versus-unfavorable TL/SL on FPR can be found in the Online Supplemental Data. TL and SL are not significantly different between FP recanalizers and non-FP recanalizers if categorized by the TL/SL quartile (Online Supplemental Data). As illustrated by the Online Supplemental Data, there are no significant differences between TL quartile distribution in FP recanalizers and non-FP recanalizers if categorized according to TL/SL quartiles.

Association between Thrombus-to-Stent Size Ratio and Overall Recanalization

TL was also longer for overall nonrecanalizers than for overall recanalizers (16 versus 13 mm, P = .025). SL was significantly shorter for nonrecanalizers than for recanalizers (20 versus 20 mm, P = .007). TL exceeded the length of the chosen stent more frequently in overall nonrecanalizers than in overall recanalizers (29.0% [n = 20/69] versus 12.8% [n = 49/382], P = .001). TL/SL was significantly greater for overall nonrecanalizers than for overall recanalizers (0.75 versus 0.6, P = .000). After adjusting for the effects of all parameters with P < .15 when comparing overall recanalizers with overall nonrecanalizers (Online Supplemental Table 1) as well as age, sex, stroke subtype, previous stroke, and tandem occlusion, SL showed no significant association with overall recanalization (aOR, 1.029 [95% CI, 0.989–1.071]; P = .157). In 2 separate multivariable regression models using the same covariates, decreasing TL and TL/SL were associated with overall recanalization (TL: aOR, 0.950 [95% CI, 0.919–0.982], P = .003; TL/SL: aOR, 0.272 [95% CI, 0.130–0.570], P = .001). In another multivariate regression model using the same covariates and including both TL and TL/SL, TL showed no association with overall recanalization (aOR, 1.016 [95% CI, 0.944–1.093]; P = .670), whereas a decreasing TL/SL remained significantly associated with overall recanalization (aOR, 0.206 [95% CI, 0.047–0.907]; P = .037). On mediation analysis, a decreasing TL showed no direct effect on overall recanalization (aOR, −0.053 [95% CI, −0.119 to 0.014]; P = .119) but proved to have a significant and positive indirect effect on overall recanalization mediated through the TL/SL (effect, 0.101 [95% bootstrap CI, 0.046–0.212]; P < .05).

Association between Thrombus-to-Stent Size Ratio and ENT

TL and SL were not significantly different between patients who showed ENT on angiography and those who did not (TL: 21 versus 14, P = .120; SL: 20 versus 20, P = .245). TL exceeded the length of the chosen stent more frequently in patients in whom ENT was observed later (36.8% [n = 7/19] versus 14.4% [n = 62/431], P = .005). The TL/SL ratio was significantly higher for patients who showed ENT (0.79 versus 0.60, P = .037). After adjusting for all cofactors with P < .15 when comparing patients with and without ENT (Online Supplemental Data) as well as age, sex, previous stroke, stroke subtype, and first-line endovascular treatment technique, an increasing TL/SL ratio was associated with ENT (aOR, 5.079 [95% CI, 1.332–19.362]; P = .017).

DISCUSSION

The main findings of this study are as follows: Increasing SL was associated with FPR. Decreasing TL and TL/SL were associated with FPR and overall recanalization. TL and SL alone showed no association with FPR or overall recanalization once TL/SL was factored in, whereas TL/SL remained a significant factor in both models. Mediation analyses showed that a decreasing TL had a significant and positive indirect effect on FPR and overall recanalization mediated through TL/SL, whereas SL had a significant and positive indirect effect on FPR success mediated through SL/TL. Increasing TL/SL was the only parameter associated with ENT.

Previous studies have come to different conclusions about the influence of thrombus and stent size on recanalization success.2⇓⇓⇓⇓⇓⇓⇓⇓-11 Multiple explanations for these discrepancies are possible: 1) Different parameters have been used to evaluate thrombus size (thrombus length,5,8 thrombus volume,6 clot burden score7). 2) Sensitivity may differ depending on the imaging tool or technique used (MR imaging 2,5,7 versus CT 6 versus DSA;2 T2* gradient recalled-echo5,7 versus SWI;2 and field strength and manufacturer of the MR imaging scanner). 3) If thrombus size is evaluated by measuring the SVS, differences in the SVS definition may influence patient selection and thrombus-size measurement.2,4 4) Fractured clots may hinder uniform and reproducible thrombus measurement. 5) Comparability of studies that examine TL is often limited owing to differing inclusion criteria (ie, M1 or anterior acute ischemic stroke only2,7,9⇓-11 versus other occlusion patterns5). 6) Because many institutions have a preferred set of retrieval devices, stent size comparison is usually limited to 1–3 size categories.9⇓-11 7) Stent retriever thrombectomy may be performed in combination with a balloon-guided catheter16 and/or contact aspiration.17 The first-line endovascular treatment technique that may influence recanalization success has not always been documented.10 8) High-volume centers may achieve recanalization more often and with fewer attempts in difficult cases than low- or medium-volume centers, thus limiting the comparability of results from different centers. 9) Thrombus and stent size as individual parameters may not affect recanalization success directly but rather have an indirect influence, which is mediated by their relation to each other.

Our results support the assumption that the last of these explanations is likely to account for most of the discrepancies so far. Because the physical interaction between retriever device and clot is at the center of successful stent retriever thrombectomy, we hypothesized that looking at thrombus size in relation to stent size may provide more specific information than is gained by considering them separately. This hypothesis is based on the supposition that the chances of clot-to-device interaction are not necessarily higher for longer stents if the occlusive clot is small enough. On the other hand, we expected that large thrombi would not inevitably lead to an increased risk of fragmentation or distal migration if the size of the stent retrieval device selected is adequate. Our analyses show that TL and SL are both associated with recanalization success but suggest that the TL/SL ratio serves as a more informative variable. Using mediation analyses, we were able to demonstrate that decreasing TL and increasing SL had a significant and positive indirect influence on successful FPR mediated through TL/SL or SL/TL, respectively, whereas decreasing TL also had a positive indirect influence on overall recanalization mediated through TL/SL.

Our results also show that FPR, which was more often achieved by avoiding a high TL/SL, led to more favorable clinical outcomes 90 days after treatment in first-pass recanalizers.

Data regarding the influence of thrombus or stent size on the risk of embolization in previously unaffected territories are scarce. Seker et al3 found no association between TL and ENT, which was supported by our results. However, the TL/SL was associated with ENT, confirming the additional value of this parameter. To improve comparability, we adjusted all our statistical analyses for the primary site of occlusion, which may affect interventional and clinical outcome parameters.18 The use of balloon-guided catheters has been found to increase recanalization success16 and reduce the risk of ENT.19 Therefore, we also took the first-line endovascular treatment technique into account in our calculations.

Our results suggest that avoiding a high TL/SL by adjusting stent retriever selection according to the presumed TL on admission imaging may be beneficial. If such an assessment is not feasible, the neurointerventionalist should reduce the probability and risks of a high TL/SL by selecting the longest stent retriever device with which she or he is comfortable from those that are otherwise adequate. Although stent retrievers with shorter diameters are believed to pose less risk for vascular injury,20 some studies have shown that longer stents might be just as safe.11,21 Future studies may examine whether this assumption would remain true for new stent retriever devices, which could be even longer than the ones currently available. Nonetheless, we can assume that the application of unnecessarily long stents carries the risk of peri-interventional complications, especially if the diameter of the occluded vessel is small and the neurointerventionalist is unaccustomed to the specific stent retriever device used. Devices designed to have an adequate length but little radial force might be an option, particularly when operating in distal vessel segments.22 The preinterventional assessment of TL could lower this risk by allowing a more nuanced stent retriever selection. In this context, possible shortening of the stent retriever device depending on the deployment technique should be considered beforehand. Regardless of the stent size and brand, extra caution is necessary when working with new or unaccustomed devices.

Limitations

This was a retrospective single-center study, which may limit generalizability. Patients who were ineligible for MR imaging or showed complete recanalization on DSA before stent retriever thrombectomy were excluded, possibly leading to selection bias. A previous study has shown that baseline criteria and reperfusion outcome of patients with stroke may differ depending on the initial imaging technique.23 TL was measured assuming that all thrombus margins are delineated by the SVS. Although some studies have shown that the SVS allows accurate TL measurement,2,12 TL assessment was not double-checked via DSA in this study, possibly leading to some over- or underestimation of TL due to blooming artifacts and/or fibrin-rich segments in heterogeneous thrombi. TL may have been underestimated in intracranial ICA occlusions that extended extracranially through the skull base. In a small number of patients, TL may have changed between admission MR imaging and mechanical thrombectomy due to thrombosis, thrombolysis, or fragmentation.

Clot density, which may impact recanalization success, could not be assessed on MR imaging. Clot composition, which may also influence recanalization success, was not evaluated in detail. Stent selection was at the discretion of the neurointerventionalist, allowing possible selection bias. Because some thrombi exceeded the longest stents available, it is uncertain whether longer stents would have been equally safe and efficient in those cases.

Ex vivo SL as provided by the manufacturer was considered for analysis. Although stent retriever devices are not designed to change in length after deployment, in vivo SL might differ slightly depending on deployment technique and vascular anatomy. Finally, data on first-pass eTICI may not always reflect the true success of the intervention in patients with multiple vessel occlusions within the same territory.

CONCLUSIONS

Thrombus length and stent length provide more useful information when considered in relation to one another. A high TL/SL ratio, which may raise the risk of unsuccessful recanalization and ENT, should be avoided whenever possible. The preinterventional assessment of TL allows a more nuanced stent retriever selection and may, thereby, help to avoid unnecessarily long stents, which would increase the risk of peri-interventional complications.

Acknowledgment

We thank Susan Kaplan for editorial assistance.

Footnotes

  • Disclosures: Marcel Arnold—RELATED: Consulting fee or honorarium: Honoraria for lectures from AstraZeneca, Bayer, Covidien, and Medtronic, and honoraria for scientific advisory boards of Amgen, Bayer, Bristol Myers Squibb, Daichi Sankyo, Medtronic, Novartis, and Sanofi; UNRELATED: Grants/grants pending: Research Grants from Swiss National Science Foundation and Swiss Heart Foundation.* Roland Wiest—UNRELATED: Consultancy: Biogen SA*; Grants/grants pending: Swiss National Foundation. Urs Fischer—UNRELATED: Consultancy: Medtronic, Stryker, CSL Behring*; Grants/grants pending: Medtronic, Swiss Heart Foundation, Swiss National Science Foundation, Comments: SWIFT DIRECT, BEYOND SWIFT, SWITCH, ELAN*; Payment for lectures including service on speakers bureaus: Boehringer Ingelheim.* Jan Gralla—RELATED: Grant: Medtronic, Comments: Global Principal Investigator of STAR and Swift Direct (Medtronic), Consultancy*; UNRELATED: Grants/grants pending: Swiss National Foundation SNF, Comments: MRI in stroke.* Johannes Kaesmacher--RELATED: Grant: SAMW/Bangerter, Swiss Stroke Society, Clinical Trial Unit Bern*; Consulting fee or honorarium: Stryker, Comments: Webinar. *Money paid to institution.

  • P. Mordasini and J. Kaesmacher contributed equally to this work.

  • The work of J. Kaesmacher was supported by the Swiss Stroke Society, the Bangerter-Rhyner-Foundation, and grants provided by the Clinical Trial Unit Bern.

Indicates open access to non-subscribers at www.ajnr.org

References

  1. 1.↵
    1. Riedel CH,
    2. Zimmermann P,
    3. Jensen-Kondering U, et al
    . The importance of size: successful recanalization by intravenous thrombolysis in acute anterior stroke depends on thrombus length. Stroke 2011;42:1775–77 doi:10.1161/STROKEAHA.110.609693 pmid:21474810
    Abstract/FREE Full Text
  2. 2.↵
    1. Weisstanner C,
    2. Gratz PP,
    3. Schroth G, et al
    . Thrombus imaging in acute stroke: correlation of thrombus length on susceptibility-weighted imaging with endovascular reperfusion success. Eur Radiol 2014;24:1735–41 doi:10.1007/s00330-014-3200-3 pmid:24832928
    CrossRefPubMed
  3. 3.↵
    1. Seker F,
    2. Pfaff J,
    3. Wolf M, et al
    . Impact of thrombus length on recanalization and clinical outcome following mechanical thrombectomy in acute ischemic stroke. J Neurointerv Surg 2017;9:937–39 doi:10.1136/neurintsurg-2016-012591 pmid:27634955
    Abstract/FREE Full Text
  4. 4.↵
    1. Kang DW,
    2. Jeong HG,
    3. Kim DY, et al
    . Prediction of stroke subtype and recanalization using susceptibility vessel sign on susceptibility-weighted magnetic resonance imaging. Stroke 2017;48:1554–59 doi:10.1161/STROKEAHA.116.016217 pmid:28432264
    Abstract/FREE Full Text
  5. 5.↵
    1. Soize S,
    2. Batista AL,
    3. Rodriguez Regent C, et al
    . Susceptibility vessel sign on T2* magnetic resonance imaging and recanalization results of mechanical thrombectomy with stent retrievers: a multicentre cohort study. Eur J Neurol 2015;22:967–72 doi:10.1111/ene.12693 pmid:25786977
    CrossRefPubMed
  6. 6.↵
    1. Baek JH,
    2. Yoo J,
    3. Song D, et al
    . Predictive value of thrombus volume for recanalization in stent retriever thrombectomy. Sci Rep 2017;7:15938 doi:10.1038/s41598-017-16274-9 pmid:29162921
    CrossRefPubMed
  7. 7.↵
    1. Derraz I,
    2. Bourcier R,
    3. Soudant M
    , et al. THRACE Investigators. Does clot burden score on baseline T2*-MRI impact clinical outcome in acute ischemic stroke treated with mechanical thrombectomy? J Stroke 2019;21:91–100 doi:10.5853/jos.2018.01921 pmid:30732444
    CrossRefPubMed
  8. 8.↵
    1. Gralla J,
    2. Burkhardt M,
    3. Schroth G, et al
    . Occlusion length is a crucial determinant of efficiency and complication rate in thrombectomy for acute ischemic stroke. AJNR Am J Neuroradiol 2008;29:247–52 doi:10.3174/ajnr.A0790 pmid:17974616
    CrossRefPubMed
  9. 9.↵
    1. Haussen DC,
    2. Al-Bayati AR,
    3. Grossberg JA, et al
    . Longer stent retrievers enhance thrombectomy performance in acute stroke. J Neurointerv Surg 2019;11:6–8 doi:10.1136/neurintsurg-2018-013918 pmid:29858398
    Abstract/FREE Full Text
  10. 10.↵
    1. Zaidat OO,
    2. Haussen DC,
    3. Hassan AE, et al
    . Impact of stent retriever size on clinical and angiographic outcomes in the STRATIS stroke thrombectomy registry. Stroke 2019;50:441–47 doi:10.1161/STROKEAHA.118.022987 pmid:30626287
    CrossRefPubMed
  11. 11.↵
    1. Yang D,
    2. Hao Y,
    3. Zi W, et al
    . Effect of retrievable stent size on endovascular treatment of acute ischemic stroke: a multicenter study. AJNR Am J Neuroradiol 2017;38:1586–93 doi:10.3174/ajnr.A5232 pmid:28596196
    Abstract/FREE Full Text
  12. 12.↵
    1. Naggara O,
    2. Raymond J,
    3. Domingo Ayllon M, et al
    . T2* “susceptibility vessel sign” demonstrates clot location and length in acute ischemic stroke. PLoS One 2013;8:e76727 doi:10.1371/journal.pone.0076727
    CrossRefPubMed
  13. 13.↵
    1. Allibert R,
    2. Billon Grand C,
    3. Vuillier F, et al
    . Advantages of susceptibility-weighted magnetic resonance sequences in the visualization of intravascular thrombi in acute ischemic stroke. Int J Stroke 2014;9:980–84 doi:10.1111/ijs.12373 pmid:25319168
    CrossRefPubMed
  14. 14.↵
    1. Liebeskind DS,
    2. Bracard S,
    3. Guillemin F, et al
    ; HERMES Collaborators. ETICI reperfusion: defining success in endovascular stroke therapy. J Neurointerv Surg 2019;11:433–38 doi:10.1136/neurintsurg-2018-014127 pmid:30194109
    Abstract/FREE Full Text
  15. 15.↵
    1. Hacke W,
    2. Kaste M,
    3. Fieschi C, et al
    . Randomised double-blind placebo-controlled trial of thrombolytic therapy with intravenous alteplase in acute ischaemic stroke (ECASS II). Lancet 1998;352:1245–51 doi:10.1016/s0140-6736(98)08020-9 pmid:9788453
    CrossRefPubMed
  16. 16.↵
    1. Velasco A,
    2. Buerke B,
    3. Stracke CP, et al
    . Comparison of a balloon guide catheter and a non-balloon guide catheter for mechanical thrombectomy. Radiology 2016;280:169–76 doi:10.1148/radiol.2015150575 pmid:26789499
    CrossRefPubMed
  17. 17.↵
    1. Texakalidis P,
    2. Giannopoulos S,
    3. Karasavvidis T, et al
    . Mechanical thrombectomy in acute ischemic stroke: a meta-analysis of stent retrievers vs direct aspiration vs a combined approach. Neurosurgery 2020;86:464–77 doi:10.1093/neuros/nyz258 pmid:31313819
    CrossRefPubMed
  18. 18.↵
    1. Demchuk AM,
    2. Goyal M,
    3. Yeatts SD
    , et al. For the IMS III Investigators. Recanalization and clinical outcome of occlusion sites at baseline CT angiography in the Interventional Management of Stroke II trial. Radiology 2014;273:202–10 doi:10.1148/radiol.14132649 pmid:24895878
    CrossRefPubMed
  19. 19.↵
    1. Chueh JY,
    2. Kühn AL,
    3. Puri AS, et al
    . Reduction in distal emboli with proximal flow control during mechanical thrombectomy: a quantitative in vitro study. Stroke 2013;44:1396–401 doi:10.1161/STROKEAHA.111.670463 pmid:23493730
    Abstract/FREE Full Text
  20. 20.↵
    1. Haussen DC,
    2. Lima A,
    3. Nogueira RG
    . The Trevo XP 320 mm retriever (‘Trevo’) for the treatment of distal intracranial occlusions. J Neurointerv Surg 2016;8:295–99 doi:10.1136/neurintsurg-2014-011613 pmid:25948592
    Abstract/FREE Full Text
  21. 21.↵
    1. Girdhar G,
    2. Epstein E,
    3. Nguyen K, et al
    . Longer 6-mm diameter stent retrievers are effective for achieving higher first pass success with fibrin-rich clots. Interv Neurol 2019;8:187–95 doi:10.1159/000499974 pmid:32508901
    CrossRefPubMed
  22. 22.↵
    1. Kurre W,
    2. Aguilar-Pérez M,
    3. Martinez-Moreno R, et al
    . Stent retriever thrombectomy of small caliber intracranial vessels using pREset LITE: safety and efficacy. Clin Neuroradiol 2017;27:351–60 doi:10.1007/s00062-016-0497-0 pmid:26795038
    CrossRefPubMed
  23. 23.↵
    1. Meinel TR,
    2. Kaesmacher J,
    3. Mosimann PJ, et al
    . Association of initial imaging modality and futile recanalization after thrombectomy. Neurology 2020;95:e2331–42 doi:10.1212/WNL.0000000000010614 pmid:32847948
    CrossRefPubMed
  • Received April 14, 2021.
  • Accepted after revision July 30, 2021.
  • © 2021 by American Journal of Neuroradiology
PreviousNext
Back to top
Advertisement
Print
Download PDF
Email Article

Thank you for your interest in spreading the word on American Journal of Neuroradiology.

NOTE: We only request your email address so that the person you are recommending the page to knows that you wanted them to see it, and that it is not junk mail. We do not capture any email address.

Enter multiple addresses on separate lines or separate them with commas.
Risks of Undersizing Stent Retriever Length Relative to Thrombus Length in Patients with Acute Ischemic Stroke
(Your Name) has sent you a message from American Journal of Neuroradiology
(Your Name) thought you would like to see the American Journal of Neuroradiology web site.
CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Cite this article
N.F. Belachew, T. Dobrocky, T.R. Meinel, A. Hakim, J. Vynckier, M. Arnold, D.J. Seiffge, R. Wiest, E.I. Piechowiak, U. Fischer, J. Gralla, P. Mordasini, J. Kaesmacher
Risks of Undersizing Stent Retriever Length Relative to Thrombus Length in Patients with Acute Ischemic Stroke
American Journal of Neuroradiology Oct 2021, DOI: 10.3174/ajnr.A7313

Citation Manager Formats

  • BibTeX
  • Bookends
  • EasyBib
  • EndNote (tagged)
  • EndNote 8 (xml)
  • Medlars
  • Mendeley
  • Papers
  • RefWorks Tagged
  • Ref Manager
  • RIS
  • Zotero
0 Responses
Respond to this article
Share
Bookmark this article
Risks of Undersizing Stent Retriever Length Relative to Thrombus Length in Patients with Acute Ischemic Stroke
N.F. Belachew, T. Dobrocky, T.R. Meinel, A. Hakim, J. Vynckier, M. Arnold, D.J. Seiffge, R. Wiest, E.I. Piechowiak, U. Fischer, J. Gralla, P. Mordasini, J. Kaesmacher
American Journal of Neuroradiology Oct 2021, DOI: 10.3174/ajnr.A7313
del.icio.us logo Twitter logo Facebook logo Mendeley logo
  • Tweet Widget
  • Facebook Like
  • Google Plus One
Purchase

Jump to section

  • Article
    • Abstract
    • ABBREVIATIONS:
    • MATERIALS AND METHODS
    • RESULTS
    • DISCUSSION
    • CONCLUSIONS
    • Acknowledgment
    • Footnotes
    • References
  • Figures & Data
  • Supplemental
  • Info & Metrics
  • Responses
  • References
  • PDF

Related Articles

  • PubMed
  • Google Scholar

Cited By...

  • Thrombectomy Alone or Alongside Intravenous Thrombolysis in Managing Acute Ischemic Stroke Caused by Basilar Artery Occlusion: A Multicenter Observational Study
  • Stent retriever size and outcomes after anterior circulation occlusion thrombectomy
  • Thrombus imaging characteristics within acute ischemic stroke: similarities and interdependence
  • Crossref (14)
  • Google Scholar

This article has been cited by the following articles in journals that are participating in Crossref Cited-by Linking.

  • Association of Stent-Retriever Characteristics in Establishing Successful Reperfusion During Mechanical Thrombectomy
    Petra Cimflova, Nishita Singh, Johanna M. Ospel, Martha Marko, Nima Kashani, Arnuv Mayank, Ricardo Hanel, Diogo C. Haussen, Aditya Bharatha, David Volders, Manraj K. S. Heran, Alexandre Y. Poppe, Brian van Adel, Bijoy K. Menon, Manish Joshi, Andrew Demchuk, Ryan McTaggart, Raul G. Nogueira, Jeremy L. Rempel, Charlotte Zerna, Michael Tymianski, Michael D. Hill, Mayank Goyal, Mohammed A. Almekhlafi
    Clinical Neuroradiology 2022 32 3
  • Prognostic Value of Thrombus Volume and Interaction With First-Line Endovascular Treatment Device Choice
    Henk van Voorst, Agnetha A.E. Bruggeman, Jurr Andriessen, Jan W. Hoving, Praneeta R. Konduri, Wenjin Yang, Manon Kappelhof, Nerea Arrarte Terreros, Yvo B.W.E.M. Roos, Wim H. van Zwam, Aad van der Lugt, Anouk van der Hoorn, Jelis Boiten, Stefan Roosendaal, Sjoerd Jenniskens, Matthan W.A. Caan, Henk A. Marquering, Bart J. Emmer, Charles B.L.M. Majoie, Diederik W.J. Dippel, Robert J. van Oostenbrugge, Jan Albert Vos, Ivo G.H. Jansen, Maxim J.H.L. Mulder, Robert- Jan B. Goldhoorn, Kars C.J. Compagne, Josje Brouwer, Sanne J. den Hartog, Wouter H. Hinsenveld, Diederik W.J. Dippel, Bob Roozenbeek, Adriaan C.G.M. van Es, Jonathan M. Coutinho, Wouter J. Schonewille, Jan Albert Vos, Marieke J.H. Wermer, Marianne A.A. van Walderveen, Julie Staals, Robert J. van Oostenbrugge, Jeannette Hofmeijer, Jasper M. Martens, Geert J. Lycklama à Nijeholt, Sebastiaan F. de Bruijn, Lukas C. van Dijk, H. Bart van der Worp, Rob H. Lo, Ewoud J. van Dijk, Hieronymus D. Boogaarts, J. de Vries, Paul L.M. de Kort, Julia van Tuijl, Jo P. Peluso, Puck Fransen, Jan S.P. van den Berg, Boudewijn A.A.M. van Hasselt, Leo A.M. Aerden, René J. Dallinga, Maarten Uyttenboogaart, Omid Eschgi, Reinoud P.H. Bokkers, Tobien H.C.M.L. Schreuder, Roel J.J. Heijboer, Koos Keizer, Lonneke S.F. Yo, Heleen M. den Hertog, Emiel J.C. Sturm, Paul J.A.M. Brouwers, Geert J. Lycklama à Nijeholt, Marianne A.A. van Walderveen, Marieke E.S. Sprengers, René van den Berg, Albert J. Yoo, Ludo F.M. Beenen, Alida A. Postma, Bas F.W. van der Kallen, Ido R. van den Wijngaard, Adriaan C.G.M. van Es, Jasper M. Martens, Lonneke S.F. Yo, Jan Albert Vos, Joost Bot, Pieter-Jan van Doormaal, Anton Meijer, Elyas Ghariq, Reinoud P.H. Bokkers, Marc P. van Proosdij, G. Menno Krietemeijer, Jo P. Peluso, Hieronymus D. Boogaarts, Rob Lo, Dick Gerrits, Wouter Dinkelaar, Auke P.A. Appelman, Bas Hammer, Sjoert Pegge, Saman Vinke, Diederik W.J. Dippel, Robert J. van Oostenbrugge, Geert J. Lycklama à Nijeholt, Jan Albert Vos, Wouter J. Schonewille, Jeannette Hofmeijer, Jasper M. Martens, H. Bart van der Worp, Rob H. Lo, Robert J. van Oostenbrugge, Jeannette Hofmeijer, H. Zwenneke Flach, Hester F. Lingsma, Naziha el Ghannouti, Martin Sterrenberg, Wilma Pellikaan, Rita Sprengers, Marjan Elfrink, Michelle Simons, Marjolein Vossers, Joke de Meris, Tamara Vermeulen, Annet Geerlings, Gina van Vemde, Tiny Simons, Gert Messchendorp, Nynke Nicolaij, Hester Bongenaar, Karin Bodde, Sandra Kleijn, Jasmijn Lodico, Hanneke Droste, Maureen Wollaert, Sabrina Verheesen, D. Jeurrissen, Erna Bos, Yvonne Drabbe, Michelle Sandiman, Nicoline Aaldering, Berber Zweedijk, Jocova Vervoort, Eva Ponjee, Sharon Romviel, Karin Kanselaar, Denn Barning, Esmee Venema, Vicky Chalos, Ralph R. Geuskens, Tim van Straaten, Saliha Ergezen, Roger R.M. Harmsma, Daan Muijres, Anouk de Jong, Olvert A. Berkhemer, Anna M.M. Boers, J. Huguet, P.F.C. Groot, Marieke A. Mens, Katinka R. van Kranendonk, Kilian M. Treurniet, Manon L. Tolhuisen, Heitor Alves, Annick J. Weterings, Eleonora L.F. Kirkels, Eva J.H.F. Voogd, Lieve M. Schupp, Sabine Collette, Adrien E.D. Groot, Natalie E. LeCouffe, Haryadi Prasetya, Lucas A. Ramos
    Stroke 2023 54 4
  • The initial experience with the Embotrap III stent-retriever in a real world setting
    Osama Omrani, Nema Hafezi-Bakhtiari, Peter DeSouza, Christos Nikola, Ken Wong, Joseph Lansley, Permesh Dhillon, Levansri Makalanda, Nathan Chan, Thomas Harrison, Alex Andrews, Isabel Siow, Keng Siang Lee, Leonard Yeo, Oliver Spooner, Pervinder Bhogal
    Interventional Neuroradiology 2024 30 5
  • Thrombus imaging characteristics within acute ischemic stroke: similarities and interdependence
    Nerea Arrarte Terreros, Agnetha AE Bruggeman, Manon Kappelhof, Manon L Tolhuisen, Josje Brouwer, Jan W Hoving, Praneeta R Konduri, Katinka R van Kranendonk, Bruna G Dutra, Heitor CBR Alves, Diederik WJ Dippel, Wim H van Zwam, Ludo FM Beenen, Lonneke SF Yo, Ed van Bavel, Charles BLM Majoie, Henk A Marquering
    Journal of NeuroInterventional Surgery 2023 15 e1
  • Variation in Vessel Size and Angiographic Outcomes Following Stent‐Retriever Thrombectomy in Acute Ischemic Stroke: STRATIS Registry
    Hamidreza Saber, Michael T. Froehler, Osama O. Zaidat, Ali Aziz Sultan, Richard P. Klucznik, Jeffrey L. Saver, Nerses Sanossian, Frank R. Hellinger, Dileep R. Yavagal, Tom L. Yao, Reza Jahan, Diogo C. Haussen, Raul G. Nogueira, Alicia M. Hall, Nils H. Mueller Kronast, David S. Liebeskind
    Stroke: Vascular and Interventional Neurology 2024 4 3
  • Stent-retriever characteristics and strategies associated with recanalization in thrombectomy for acute ischemic stroke
    Keisuke Kawamoto, Yoichiro Nagao, Masaki Naganuma, Yuichiro Inatomi, Yoichiro Hashimoto, Toshiro Yonehara, Makoto Nakajima
    Clinical Neurology and Neurosurgery 2024 242
  • Thrombectomy Alone or Alongside Intravenous Thrombolysis in Managing Acute Ischemic Stroke Caused by Basilar Artery Occlusion: A Multicenter Observational Study
    Mo Yang, Yue-zhou Cao, Peng-hua Lv, Yasuo Ding, Zhensheng Liu, Zhenyu Jia, Lin-bo Zhao, Chuan Xu, Hai-bin Shi, Sheng Liu
    American Journal of Neuroradiology 2025 46 4
  • A retrospective study of the Dual-channels Bolus Contrast Injection (Dc-BCI) technique during endovascular mechanical thrombectomy in the management of acute ischemic stroke due to large-vessel occlusion: a technical report
    Ying Jiang, Yi-Lin Liu, Xiang Zhou, Qin-Qin Shu, Lan Dong, Zheng Xu, Jie-Qing Wan
    Frontiers in Neurology 2025 16
  • Assessment of thrombus using susceptibility‐weighted filtered‐phase images in patients with acute ischemic stroke
    Joonwon Lee, Ho‐Joon Lee, Sam Yeol Ha, Hyung Chan Kim, Yeonah Kang, Sung‐Chul Jin, Seongho Park
    Journal of Neuroimaging 2023 33 1
  • Microcatheter tracking in thrombectomy procedures: A finite-element simulation study
    Nerea Arrarte Terreros, Silvia Renon, Francesca Zucchelli, Sara Bridio, Jose Felix Rodriguez Matas, Gabriele Dubini, Praneeta R. Konduri, Miou S. Koopman, Wim H. van Zwam, Lonneke S.F. Yo, Rob H. Lo, Henk A. Marquering, Ed van Bavel, Charles B.L.M. Majoie, Francesco Migliavacca, Giulia Luraghi
    Computer Methods and Programs in Biomedicine 2023 234

More in this TOC Section

  • Effect of SARS-CoV2 on Endovascular Thrombectomy
  • Flow diversion for distal circulation aneurysms
  • Neuroform Atlas Stent for Intracranial Aneurysms
Show more Neurointervention

Similar Articles

Advertisement

Indexed Content

  • Current Issue
  • Accepted Manuscripts
  • Article Preview
  • Past Issues
  • Editorials
  • Editor's Choice
  • Fellows' Journal Club
  • Letters to the Editor
  • Video Articles

Cases

  • Case Collection
  • Archive - Case of the Week
  • Archive - Case of the Month
  • Archive - Classic Case

More from AJNR

  • Trainee Corner
  • Imaging Protocols
  • MRI Safety Corner
  • Book Reviews

Multimedia

  • AJNR Podcasts
  • AJNR Scantastics

Resources

  • Turnaround Time
  • Submit a Manuscript
  • Submit a Video Article
  • Submit an eLetter to the Editor/Response
  • Manuscript Submission Guidelines
  • Statistical Tips
  • Fast Publishing of Accepted Manuscripts
  • Graphical Abstract Preparation
  • Imaging Protocol Submission
  • Evidence-Based Medicine Level Guide
  • Publishing Checklists
  • Author Policies
  • Become a Reviewer/Academy of Reviewers
  • News and Updates

About Us

  • About AJNR
  • Editorial Board
  • Editorial Board Alumni
  • Alerts
  • Permissions
  • Not an AJNR Subscriber? Join Now
  • Advertise with Us
  • Librarian Resources
  • Feedback
  • Terms and Conditions
  • AJNR Editorial Board Alumni

American Society of Neuroradiology

  • Not an ASNR Member? Join Now

© 2025 by the American Society of Neuroradiology All rights, including for text and data mining, AI training, and similar technologies, are reserved.
Print ISSN: 0195-6108 Online ISSN: 1936-959X

Powered by HighWire
