Research ArticlePediatrics

Cerebellar Watershed Injury in Children

J.N. Wright, D.W.W. Shaw, G. Ishak, D. Doherty and F. Perez
American Journal of Neuroradiology May 2020, 41 (5) 923-928; DOI: https://doi.org/10.3174/ajnr.A6532
J.N. Wright
aFrom the Departments of Radiology (J.N.W., D.W.W.S., G.I., F.P.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for J.N. Wright
D.W.W. Shaw
aFrom the Departments of Radiology (J.N.W., D.W.W.S., G.I., F.P.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for D.W.W. Shaw
G. Ishak
aFrom the Departments of Radiology (J.N.W., D.W.W.S., G.I., F.P.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for G. Ishak
D. Doherty
bPediatrics (D.D.), Divisions of Developmental and Genetic Medicine, University of Washington and Seattle Children’s Hospital, Seattle, Washington.
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for D. Doherty
F. Perez
aFrom the Departments of Radiology (J.N.W., D.W.W.S., G.I., F.P.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for F. Perez
  • Article
  • Figures & Data
  • Info & Metrics
  • Responses
  • References
  • PDF
Loading

Abstract

BACKGROUND AND PURPOSE: Focal signal abnormalities at the depth of the cerebellar fissures in children have recently been reported to represent a novel pattern of bottom-of-fissure dysplasia. We describe a series of patients with a similar distribution and appearance of cerebellar signal abnormality attributable to watershed injury.

MATERIALS AND METHODS: Twenty-three children with MR imaging findings of focal T2 prolongation in the cerebellar gray matter and immediate subjacent white matter at the depth of the fissures were included. MR imaging examinations were qualitatively analyzed for the characteristics and distribution of signal abnormality within posterior fossa structures, the presence and distribution of volume loss, the presence of abnormal contrast enhancement, and the presence and pattern of supratentorial injury.

RESULTS: T2 prolongation was observed at the depths of the cerebellar fissures bilaterally in all 23 patients, centered at the expected location of the deep cerebellar vascular borderzone. Diffusion restriction was associated with MR imaging performed during acute injury in 13/16 patients. Five of 23 patients had prior imaging, all demonstrating a normal cerebellum. The etiology of injury was hypoxic-ischemic injury in 17/23 patients, posterior reversible encephalopathy syndrome in 3/23 patients, and indeterminate in 3/23 patients. Twenty of 23 patients demonstrated an associated classic parasagittal watershed pattern of supratentorial cortical injury. Injury in the chronic phase was associated with relatively preserved gray matter volume in 8/15 patients, closely matching the published appearance of bottom-of-fissure dysplasia.

CONCLUSIONS: In a series of patients with findings similar in appearance to the recently described bottom-of-fissure dysplasia, we have demonstrated a stereotyped pattern of injury attributable to cerebellar watershed injury.

ABBREVIATIONS:

HII
hypoxic-ischemic injury
PRES
posterior reversible encephalopathy syndrome
SCA
superior cerebellar artery

Focal signal abnormalities at the depth of the cerebellar fissures in children have recently been reported and have been hypothesized to represent a novel pattern of bottom-of-fissure dysplasia.1 On the basis of our observation of a similar imaging pattern in patients—including some with initially normal scan findings—who displayed a depth of cerebellar fissure abnormality attributable to ischemic injury, we sought to review our institutional experience. We report a series of 23 patients with a similar distribution and appearance of cerebellar signal abnormality attributable to watershed injury.

MATERIALS AND METHODS

The study was approved by our institutional review board, and on the basis of minimal risk, the need for written informed consent was waived. Twenty-three patients with MR imaging findings of focal T2 prolongation in the cerebellar gray matter at the depth of the fissures were identified by querying our local radiology data base for the past 15 years and are included in this review. Retrospective analysis of the MR imaging studies was performed by 2 subspecialty board-certified pediatric neuroradiologists with 8 (J.N.W.) and 7 (F.P.) years of experience. Imaging datasets were qualitatively analyzed for the characteristics and distribution of signal abnormality within posterior fossa structures, the presence and distribution of volume loss, the presence of abnormal contrast enhancement, and the presence and pattern of supratentorial injury. Patient demographics, clinical histories, and ultimate clinicoradiologic diagnoses were determined by chart review.

RESULTS

Patients

Twenty-three patients with characteristic abnormal cerebellar signal were included in our retrospective analysis, of which 16 were males and 7 females (1 proportion Z-test; z = 1.877; P = .06). Age at the first MR imaging examination demonstrating cerebellar signal abnormality ranged from 2 months to 18 years, with a mean of 4.4 years and a median of 1.2 years. The mean age for patients with acute-phase imaging (n = 16) was 3.2 years; and for acute-phase imaging excluding posterior reversible encephalopathy syndrome (PRES) (n = 13), it was 0.7 years. Final clinicoradiologic determination of the etiology of brain injury was hypoxic-ischemic injury (HII) in 17 patients, PRES in 3 patients, and indeterminate in 3 patients. Among patients with HII, 5 cases were secondary to abusive head trauma; 4, to cardiorespiratory arrest; 3, to perinatal birth injury; 2, to profound septic shock; 2, to perioperative hypotension; and 1, to accidental asphyxiation. Ten patients had follow-up imaging at least 1 year after the initial MR imaging demonstrating cerebellar abnormality, with a median follow-up of 64 months (range, 15–142 months). Five patients had past MR imaging studies available, obtained before the first MR imaging that demonstrated the cerebellar abnormality.

Infratentorial Imaging Findings

The key imaging feature was T2 and FLAIR hyperintensity and T1 hypointensity confined to the gray matter and immediate subjacent white matter at the depths of the cerebellar fissures (Fig 1). The findings were best seen on coronal and parasagittal fluid-sensitive sequences. In all patients, bilateral hemispheric involvement was present, with injury typically involving multiple fissures centered at the expected location of the borderzone between the superior cerebellar artery (SCA), AICA, and PICA (Fig 2). The cerebellar tonsils were injured in 39% (9/23) of cases. The cerebellar vermis was spared in 91% (21/23) of patients. Five of the 23 patients had prior imaging studies, all of which demonstrated a normal cerebellar cortex (Fig 3).

Fig 1.
  • Download figure
  • Open in new tab
  • Download powerpoint

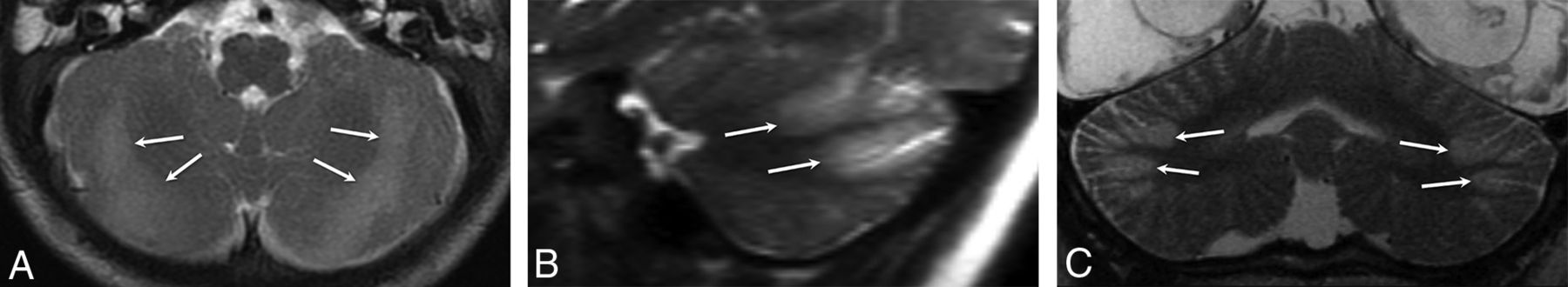

Fig 1.

Axial T2WI from patient 2 (A), parasagittal T2WI from patient 8 (B), and a coronal T2WI from patient 6 (C) demonstrate the characteristic appearance and location of cerebellar watershed injury. There is T2 prolongation greatest in the gray matter at the depths of the cerebellar fissures (white arrows) within the deep cerebellar watershed territory.

Fig 2.
  • Download figure
  • Open in new tab
  • Download powerpoint

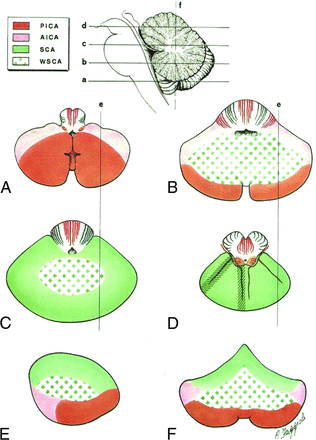

Fig 2.

Schematic drawing of the vascular territories of the cerebellum. Note the central distribution of the cerebellar watershed areas (WSCA) at the junction of PICA, AICA, and SCA. The distribution of MR imaging signal abnormality in our case series corresponds to cerebellar watershed regions, best demonstrated by comparing the axial (B), parasagittal (E), and coronal (F) schematic images with multiplanar MR images in Fig 1. Modified from Savoiardo et al.7

Fig 3.
  • Download figure
  • Open in new tab
  • Download powerpoint

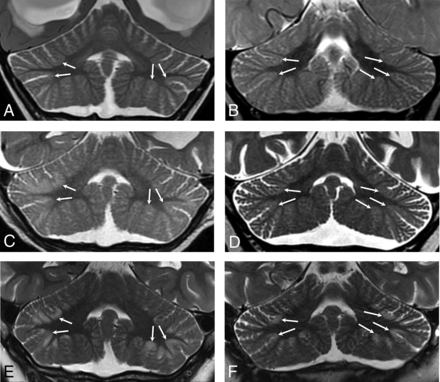

Fig 3.

Coronal T2WI from patient 4 (A, C, and E) and patient 11 (B, D, and F) demonstrates the appearance of newly developed acute (C and D) and subsequent chronic (E and F) phase injury in previously normal cerebella (A and B). White arrows highlight multipe sites demonstrating progressive development of typical watershed injury in previously normal gray matter.

Imaging was available for 16/23 patients during the acute phase of injury, defined as <7 days from the suspected clinical event. All patients demonstrated normal thickness or a mildly thickened cerebellar cortex (Figs 3 and 4). Eighty-one percent (13/16) of patients demonstrated acute diffusion restriction (12 with an eventual clinical diagnosis of HII, 1 of unknown etiology) (Fig 4A–C), while 19% (3/16) of patients demonstrated no diffusion abnormality (all with an eventual clinical diagnosis of PRES) (Fig 4D–F). The 3 patients with PRES were imaged in the acute phase only, with no imaging follow-up available.

Fig 4.
  • Download figure
  • Open in new tab
  • Download powerpoint

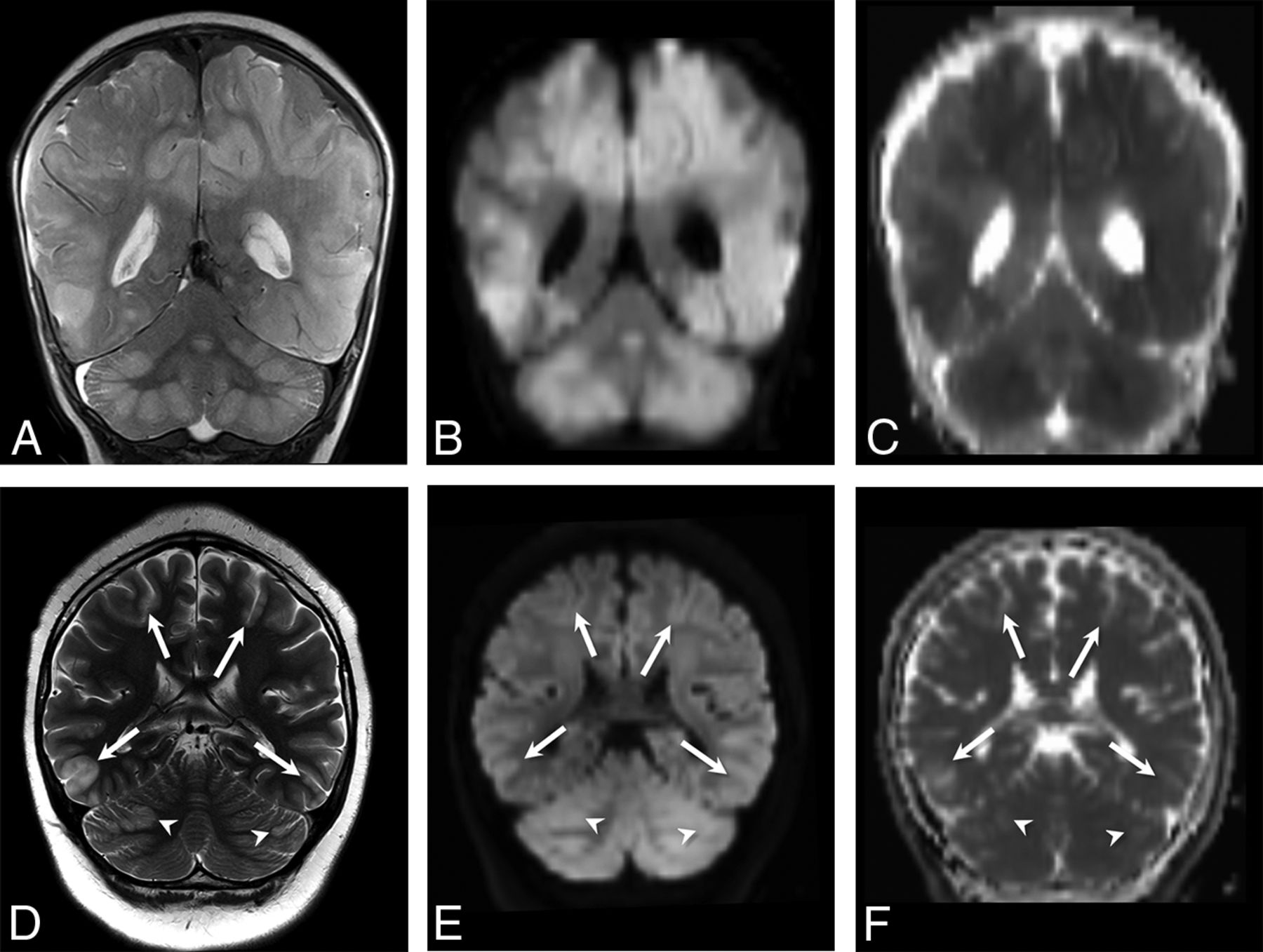

Fig 4.

Coronal T2WI (A), coronal DWI (B), and coronal ADC map (C) from patient 18 demonstrate acute cerebellar and supratentorial injury with T2 prolongation and restricted diffusion in the setting of HII. Coronal T2WI (D), coronal DWI (E), and coronal ADC map (F) from patient 9 demonstrate acute cerebellar (white arrowheads) and supratentorial (white arrows) injury without diffusion restriction in the setting of PRES.

Imaging was available for 7/23 patients in the subacute phase of injury, defined as 7–30 days from the suspected clinical event. Three of 7 patients (patients 4, 18, and 22) demonstrated intrinsic T1 signal hyperintensity at the depths of the cerebellar fissures (Fig 5A). In 1 case, this was demonstrated to have resolved on a follow-up study performed 1 month later (patient 22) (Fig 5B). One patient who underwent contrast-enhanced MR imaging in the subacute phase demonstrated focal contrast enhancement in the areas of cerebellar injury (patient 18).

Fig 5.
  • Download figure
  • Open in new tab
  • Download powerpoint

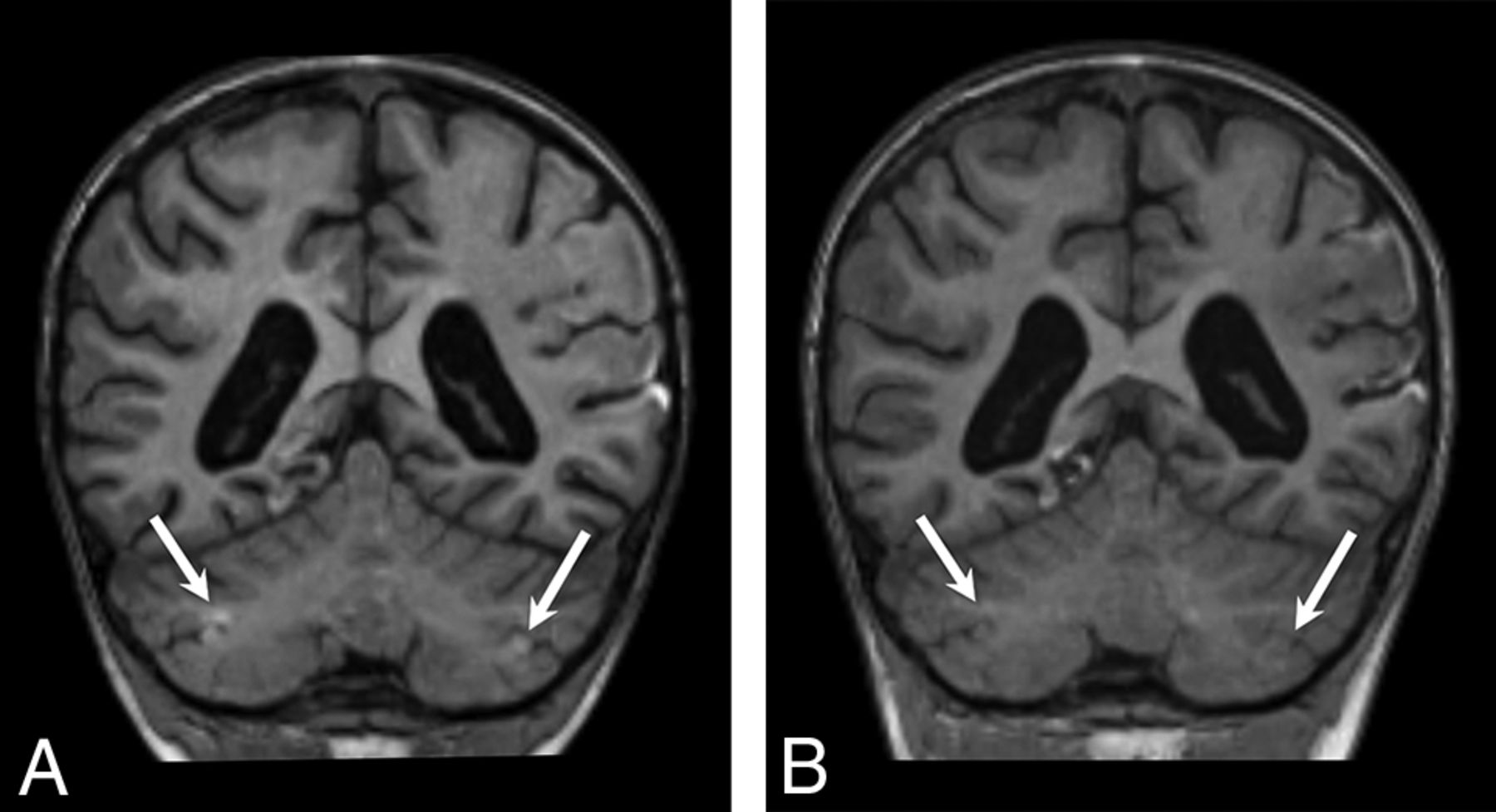

Fig 5.

Coronal T1WI from patient 22 in the subacute (A) and chronic (B) phases demonstrates focal T1 hyperintensity in the bilateral cerebellar watershed (white arrows in A), consistent with laminar necrosis and resolved within 1 month on follow-up (white arrows in B).

Imaging was available for 15/23 patients in the chronic phase of injury, defined as >30 days from the suspected clinical event. All had variable thicknesses of T2 prolongation without diffusion restriction in the cerebellar cortex and the immediate subcortical white matter (Fig 6). Seven of 15 patients had marked cortical volume loss with minimal residual T2 hyperintensity (Fig 6A, -B), while the remaining 8 demonstrated a relatively thick layer of T2 hypersignal involving the foliar cortex without substantial volume loss (Fig 6C, -D). Subtle fissural prominence and mild foliar volume loss were identified in 14/15 patients. Ten patients had follow-up for >1 year after the initial MR imaging demonstrating cerebellar signal abnormality, with a median follow-up interval of 5.3 years (range, 1.3–11.8 years). Cerebellar signal abnormality persisted in all cases and for up to 11.8 years in the case with the longest follow-up (patient 1). There were no discernable group differences in terms of the presence of supratentorial injury, overall injury extent or severity, the presence of acute-phase diffusion restriction, underlying etiology, or mean length of follow-up between patients with thick or thin T2 foliar hyperintensity in the chronic phase.

Fig 6.
  • Download figure
  • Open in new tab
  • Download powerpoint

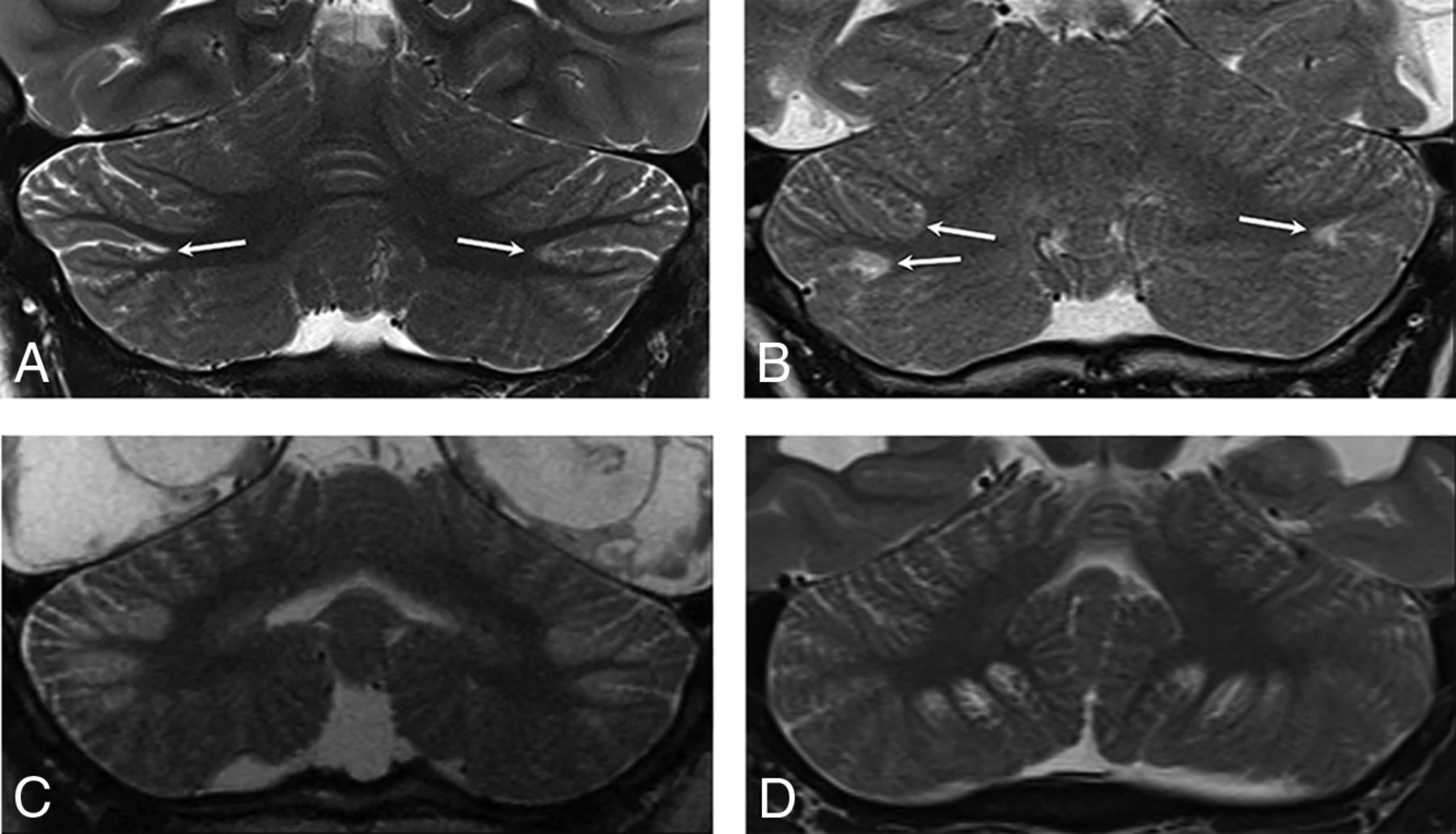

Fig 6.

Coronal T2WI from patients during the chronic phase. Patients 1 (A) and 2 (B) demonstrate T2 prolongation with relatively marked gray matter volume loss at the sites of prior injury (white arrows). Patients 7 (C) and 10 (D) demonstrate a thick lamina of gray matter T2 prolongation centered at the depths of the cerebellar fissures in an arterial watershed distribution. See also Figs 1C, 3E, and 3F for additional examples.

Supratentorial Imaging Findings

In the supratentorial brain, 87% (20/23) of patients demonstrated a classic parasagittal watershed pattern of cortical injury (Fig 7), with 11 with additional evidence of associated basal ganglia injury. Seventeen patients had watershed infarctions and a concordant clinical history of HII. The remaining 3 patients demonstrated a watershed pattern of injury typical of PRES. In all cases, the apparent timing of the supratentorial injury was consistent with the estimated timing relative to the suspected clinical event.

Fig 7.
  • Download figure
  • Open in new tab
  • Download powerpoint

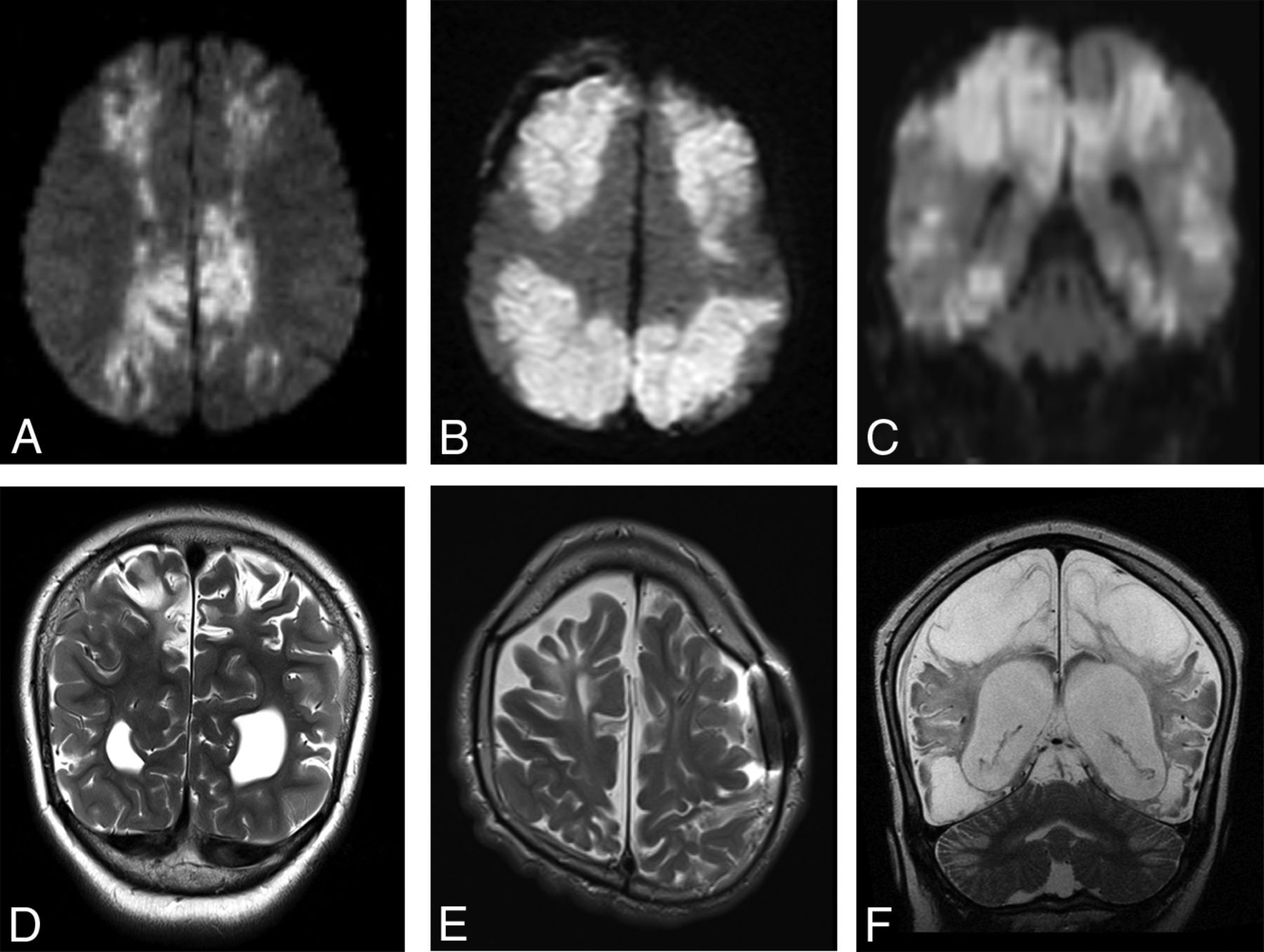

Fig 7.

Findings of both acute and remote supratentorial watershed injury in patients 1–6 (A–F, respectively). Acute watershed infarcts with signal abnormality on axial (A and B) and coronal (C) DWI in a characteristic parasagittal distribution. Subacute or remote watershed infarcts with hyperintensity and parenchymal volume loss on coronal (D and F) and axial (E) T2.

Three of 23 patients demonstrated no evidence of supratentorial watershed cortical injury. One (patient 11) demonstrated diffuse progressive cortical atrophy and a deep pattern of watershed injury in the supratentorial white matter, in the context of underlying drug-resistant chronic epileptic encephalopathy. The remaining 2 patients had no demonstrable supratentorial cortical injury. The first of these had a history of remote aortic stenosis and coarctation repair, and the second had end-stage renal disease complicated by chronic hypotension and respiratory failure, both of which may have predisposed to recurrent hypoperfusion events that were clinically unsuspected. Of the 3 patients without supratentorial cortical watershed injury, 2 had prior imaging demonstrating normal cerebella (patients 10 and 11).

DISCUSSION

We hypothesize that the pathologic basis for the stereotyped depth-of-cerebellar-fissure MR imaging findings in our case series is cerebellar watershed injury for the following reasons: 1) location at the deep borderzone between the cerebellar artery vascular territories, 2) association with a classic watershed pattern of supratentorial cortical injury, 3) frequent acute-phase diffusion restriction with expected evolution across time, and 4) frequent late foliar volume loss with fissural prominence. Furthermore, among patients with MR imaging performed before the suspected clinical insult, the cerebellar abnormalities were not previously present, indicating an acquired insult rather than a congenital malformation. Diaschisis secondary to the supratentorial injury was considered an unlikely contributor to the observed infratentorial injury pattern, due to the simultaneous evolution of brain injury in both locations and the multifocal rather than diffuse nature of the cerebellar findings.

Two distinct etiologies of watershed injury were observed in our case series, including PRES and watershed infarctions in the setting of HII. The cortical injury in PRES is poorly characterized at the cellular level but is presumed secondary to abnormal perfusion in the setting of disturbed autoregulation. As is typical of this entity, acute-phase imaging demonstrated T2 prolongation associated with facilitated diffusion. PRES has a strong and well-described predilection for vascular borderzones in the supratentorial brain. While cerebellar involvement has been reported, its distribution has not been well-characterized.2

A classic parasagittal distribution of supratentorial watershed infarctions is well-recognized, with preferential involvement of the end-arterial borderzones between the anterior, middle, and posterior cerebral artery vascular territories. Cerebellar watershed infarcts remain less well-described, with scattered case reports and case series describing predominantly embolic watershed infarcts in adults.3-6 A few authors have emphasized the distinction between superficial cerebellar borderzone embolic infarcts and deep cerebellar watershed infarcts, the latter related to hypoperfusion and centered at the interface between the penetrating arteries of the cerebellar arteries.7-10

Although some authors have asserted that deep watershed infarcts predominantly affect the deep cerebellar white matter, several lines of evidence suggest that focal injury to the gray matter at the depth of the cerebellar fissures is, in fact, the expected pattern. In a primate model of induced cerebral hypoperfusion,11,12 cerebellar injury in the watershed between the SCA and PICA was noted in 7/15 adult rhesus monkeys, in conjunction with classic supratentorial watershed injury. The injury predominantly affected cortical gray matter at the depths of the cerebellar fissures. Depth of fissure gray matter injury was also noted on gross and histopathologic evaluations of human brains after hypoxic injury,13 in a pattern exactly corresponding to the distribution of injury in our case series. This distribution may reflect the unique angioarchitecture of the penetrating arteries in the cerebellum, analogous to the propensity for depth-of-sulcus cortical injury in neonates with HII reported by Takashima et al.14

Sparing of the cerebellar vermis was a notable feature in our patients, possibly because the arterial supply to the vermis is almost entirely derived from the SCA, with relatively minor contributions from the inferior cerebellar arteries.15 In contrast, cerebellar tonsillar injury was observed in more than one-third of patients in our series, likely reflecting its location at the borderzone between the AICA and PICA territories.15

Our patient series comprised a disproportionate number of male patients, though this finding did not reach statistical significance regarding variance from an expected population proportion of 50% male. This may, in part, be related to the number of cases of HII secondary to abusive head trauma in our series, which is known to disproportionately affect male patients.16 Haas-Lude et al17 recently reported a strikingly similar pattern of cerebellar injury in 2 patients with abusive head trauma, both with a supratentorial watershed pattern of HII. It would be interesting to investigate the prevalence of this finding in a larger cohort of patients with suspected abusive head trauma to better understand its predictive value above and beyond the presence of HII more generally.

Our case series is among the first to describe the characteristic appearance of cerebellar watershed injury in children. Recognition of this pattern of injury is important for identifying patients with HII or PRES and for avoiding misdiagnosis. For example, 1 of our patients was originally misdiagnosed with cerebellitis based on abnormal cerebellar T2 hyperintensity (patient 10), delaying definitive diagnosis. Similarly, Mills et al18 reported a case of “severe cerebellitis” in a child with supratentorial watershed infarcts following methadone poisoning. The imaging findings in that case are strikingly similar to those in our case series, raising the possibility of watershed cerebellar injury rather than cerebellitis.

A second patient in our case series was initially diagnosed with bottom-of-fissure dysplasia; however, a prior MR imaging subsequently became available demonstrating a normal cerebellum, indicating an acquired rather-than-congenital lesion. The similarity between our reported imaging findings and those of Poretti et al1 suggests that unrecognized watershed injury may have been present in some or all of their cases, or that cerebellar watershed injury and bottom-of-fissure dysplasia share a common imaging appearance. Although they considered the possibility of cerebellar watershed injury as the etiology of the imaging findings in Poretti et al,1 they ultimately concluded that lack of substantial white matter involvement, variability of distribution of involved fissures, and stability with time all argued against this possibility. It is clear from our patient series—corroborated by the available experimental neurophysiology and neuropathology literature—that the foliar gray matter at the depths of the fissures is an expected location of cerebellar watershed injury, with minimal or absent white matter involvement.11-13 Variable fissural involvement is expected because it reflects the relatively variable vascular territories and shifting borderzones of the cerebellar arteries.15 Furthermore, stability with time in the chronic phase, often with unexpectedly subtle volume loss, was the norm in our series.

There are several limitations to our analysis, primarily reflecting the small sample size and retrospective design. We were unable to assess the clinical implications of cerebellar watershed injury in our case series because of the small and heterogeneous sample. Our study does not permit an analysis of the prevalence of cerebellar imaging findings among children with supratentorial watershed injury. It is also possible that a subset of our cases may represent a dysplastic process as suggested by Poretti et al,1 particularly those without corroborative supratentorial findings. However, 5 of our patients had a prior MR imaging study demonstrating a normal cerebellum, including 2 of the 3 patients without clear supratentorial cortical watershed injury, arguing against the likelihood of a developmental abnormality.

CONCLUSIONS

We have demonstrated a stereotyped pattern of injury that is most plausibly attributable to cerebellar watershed injury. This report extends the reported imaging findings in watershed cortical injury related to HII and PRES, which are an important diagnostic consideration when cerebellar dysplasia and inflammatory pathologies such as cerebellitis are being entertained.

References

  1. 1.↵
    1. Poretti A,
    2. Capone A,
    3. Hackenberg A, et al
    . Cerebellar bottom-of-fissure dysplasia: a novel cerebellar gray matter neuroimaging pattern. Cerebellum 2016;15:705–09 doi:10.1007/s12311-015-0736-y pmid:26525217
    CrossRefPubMed
  2. 2.↵
    1. Bartynski WS,
    2. Boardman JF
    . Distinct imaging patterns and lesion distribution in posterior reversible encephalopathy syndrome. AJNR Am J Neuroradiol 2007;28:1320–27 doi:10.3174/ajnr.A0549 pmid:17698535
    Abstract/FREE Full Text
  3. 3.↵
    1. Amarenco P,
    2. Kase CS,
    3. Rosengart A, et al
    . Very small (border zone) cerebellar infarcts: distribution, causes, mechanisms and clinical features. Brain 1993;116:161–86 doi:10.1093/brain/116.1.161 pmid:8453455
    CrossRefPubMed
  4. 4.
    1. Yin WM,
    2. Nagata K,
    3. Satoh Y, et al
    . Infratentorial infarction: correlation of MR findings with neurological and angiographical features. Neurol Res1994;16:154–58 doi:10.1080/01616412.1994.11740217 pmid:7936080
    CrossRefPubMed
  5. 5.
    1. Benjumea V,
    2. Vélez A,
    3. Hernández O, et al
    . Infartos limítrofes cerebrales y cerebelosos asociados a compromiso hemodinámico: reporte de caso y revisión de la literature. Acta Neurol Colomb 2014;30:342–45. http://www.scielo.org.co/pdf/anco/v30n4/v30n4a16.pdf. Accessed April 6, 2020
  6. 6.↵
    1. Zheng M,
    2. Sun AP,
    3. Sun QL, et al
    . Clinical and imaging analysis of a cerebellar watershed infarction. Chinese Medicine 2015;06:54–60 doi:10.4236/cm.2015.61006
    CrossRef
  7. 7.↵
    1. Savoiardo M,
    2. Bracchi M,
    3. Passerini A, et al
    . The vascular territories in the cerebellum and brainstem: CT and MR study. AJNR Am J Neuroradiol 1987;8:199–209 pmid:3105277
    Abstract/FREE Full Text
  8. 8.
    1. Cormier PJ,
    2. Long ER,
    3. Russell EJ
    . MR imaging of posterior fossa infarctions: vascular territories and clinical correlates. Radiographics 1992;12:1079–96 doi:10.1148/radiographics.12.6.1439013 pmid:1439013
    CrossRefPubMed
  9. 9.
    1. Amarenco P
    . Cerebellar infarctions and their mechanisms. Rev Neurol (Paris) 1993;149:728–48 pmid:8091085
    PubMed
  10. 10.↵
    1. Caplan LR
    . Cerebellar infarcts: key features. Rev Neurol Dis 2005;2:51–60 pmid:19813298
    PubMed
  11. 11.↵
    1. Brierley JB,
    2. Excell BJ
    . The effects of profound systemic hypotension upon the brain of M. rhesus. Brain 1966;89:269–98 doi:10.1093/brain/89.2.269 pmid:4957209
    CrossRefPubMed
  12. 12.↵
    1. Brierley JB,
    2. Brown AW,
    3. Excell J, et al
    . Brain damage in the rhesus monkey resulting from profound arterial hypotension, I: its nature, distribution and general physiological correlates. Brain Res 1969;13:68–100 doi:10.1016/0006-8993(69)90144-9 pmid:4979851
    CrossRefPubMed
  13. 13.↵
    1. Graham DI
    . Pathology of hypoxic brain damage in man. J Clin Path Suppl (R Coll Pathol) 1977;11:170–80 doi:10.1136/jcp.s3-11.1.170 pmid:269118
    CrossRefPubMed
  14. 14.↵
    1. Takashima S,
    2. Armstrong DL,
    3. Becker LE
    . Subcortical leukomalacia: relationship to development of the cerebral sulcus and its vascular supply. Arch Neurol 1978;35:470–72 doi:10.1001/archneur.1978.00500310072015 pmid:666599
    CrossRefPubMed
  15. 15.↵
    1. Icardo JM,
    2. Ojeda JL,
    3. Garcia-Porrero JA, et al
    . The cerebellar arteries: cortical patterns and vascularization of the cerebellar nuclei. Acta Anat (Basel) 1982;113:108–16 doi:10.1159/000145545 pmid:7124324
    CrossRefPubMed
  16. 16.↵
    1. Selassie AW,
    2. Borg K,
    3. Busch C, et al
    . Abusive head trauma in young children: a population-based study. Pediatr Emerg Care 2013;29:283–91 doi:10.1097/PEC.0b013e31828503ea pmid:23426240
    CrossRefPubMed
  17. 17.↵
    1. Haas-Lude K,
    2. Roulet-Perez E,
    3. Döbler-Neumann M, et al
    . Cerebellar lesions in pediatric abusive head trauma. Eur J Paediatr Neurol 2019;23:604–08 doi:10.1016/j.ejpn.2019.05.001 pmid:31147107
    CrossRefPubMed
  18. 18.↵
    1. Mills F,
    2. MacLennan SC,
    3. Devile CJ, et al
    . Severe cerebellitis following methadone poisoning. Pediatr Radiol 2008;38:227–29 doi:10.1007/s00247-007-0635-6 pmid:17952429
    CrossRefPubMed
  • Received December 17, 2019.
  • Accepted after revision March 16, 2020.
  • © 2020 by American Journal of Neuroradiology
View Abstract
PreviousNext
Back to top

In this issue

American Journal of Neuroradiology: 41 (5)
American Journal of Neuroradiology
Vol. 41, Issue 5
1 May 2020
  • Table of Contents
  • Index by author
  • Complete Issue (PDF)
Advertisement
Print
Download PDF
Email Article

Thank you for your interest in spreading the word on American Journal of Neuroradiology.

NOTE: We only request your email address so that the person you are recommending the page to knows that you wanted them to see it, and that it is not junk mail. We do not capture any email address.

Enter multiple addresses on separate lines or separate them with commas.
Cerebellar Watershed Injury in Children
(Your Name) has sent you a message from American Journal of Neuroradiology
(Your Name) thought you would like to see the American Journal of Neuroradiology web site.
CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Cite this article
J.N. Wright, D.W.W. Shaw, G. Ishak, D. Doherty, F. Perez
Cerebellar Watershed Injury in Children
American Journal of Neuroradiology May 2020, 41 (5) 923-928; DOI: 10.3174/ajnr.A6532

Citation Manager Formats

  • BibTeX
  • Bookends
  • EasyBib
  • EndNote (tagged)
  • EndNote 8 (xml)
  • Medlars
  • Mendeley
  • Papers
  • RefWorks Tagged
  • Ref Manager
  • RIS
  • Zotero
0 Responses
Respond to this article
Share
Bookmark this article
Cerebellar Watershed Injury in Children
J.N. Wright, D.W.W. Shaw, G. Ishak, D. Doherty, F. Perez
American Journal of Neuroradiology May 2020, 41 (5) 923-928; DOI: 10.3174/ajnr.A6532
del.icio.us logo Twitter logo Facebook logo Mendeley logo
  • Tweet Widget
  • Facebook Like
  • Google Plus One
Purchase

Jump to section

  • Article
    • Abstract
    • ABBREVIATIONS:
    • MATERIALS AND METHODS
    • RESULTS
    • DISCUSSION
    • CONCLUSIONS
    • References
  • Figures & Data
  • Info & Metrics
  • Responses
  • References
  • PDF

Related Articles

  • No related articles found.
  • PubMed
  • Google Scholar

Cited By...

  • Reply
  • Depth-of-Fissure Cerebellar Infarcts in Adults
  • Crossref (11)
  • Google Scholar

This article has been cited by the following articles in journals that are participating in Crossref Cited-by Linking.

  • Brain MR patterns in inherited disorders of monoamine neurotransmitters: An analysis of 70 patients
    Oya Kuseyri Hübschmann, Alexander Mohr, Jennifer Friedman, Filippo Manti, Gabriella Horvath, Elisenda Cortès‐Saladelafont, Saadet Mercimek‐Andrews, Yilmaz Yildiz, Roser Pons, Jan Kulhánek, Mari Oppebøen, Jeanette Aimee Koht, Inés Podzamczer‐Valls, Rosario Domingo‐Jimenez, Salvador Ibáñez, Oscar Alcoverro‐Fortuny, Teresa Gómez‐Alemany, Pedro de Castro, Chiara Alfonsi, Dimitrios I. Zafeiriou, Eduardo López‐Laso, Philipp Guder, René Santer, Tomáš Honzík, Georg F. Hoffmann, Sven F. Garbade, H. Serap Sivri, Vincenzo Leuzzi, Kathrin Jeltsch, Angeles García‐Cazorla, Thomas Opladen, Inga Harting
    Journal of Inherited Metabolic Disease 2021 44 4
  • Stenting Plus Medical Therapy and Risk of Stroke and Death in Patients With Symptomatic Intracranial Stenosis—Reply
    Peng Gao, Tao Wang, Liqun Jiao
    JAMA 2022 328 24
  • Anything but Little: a Pictorial Review on Anatomy and Pathology of the Cerebellum
    Sven Dekeyzer, Stephanie Vanden Bossche, Laurens De Cocker
    Clinical Neuroradiology 2023 33 4
  • Borderzone infarction and recurrent stroke in intracranial atherosclerosis
    Alexandra Kvernland, Jose Torres, Eytan Raz, Erez Nossek, Adam de Havenon, Mulugeta Gebregziabher, Pooja Khatri, Shyam Prabhakaran, David S. Liebeskind, Shadi Yaghi
    Journal of Stroke and Cerebrovascular Diseases 2023 32 1
  • Depth-of-Fissure Cerebellar Infarcts in Adults
    L.J.L. De Cocker, J. Hendrikse
    American Journal of Neuroradiology 2020 41 8
  • Frequency of Cerebellar Abnormalities Associated With the Differing Magnetic Resonance Imaging Patterns of Term Hypoxic-Ischemic Injury in Children
    Shyam Sunder B. Venkatakrishna, Parth Sharma, Luis Octavio Tierradentro-Garcia, Mohamed Elsingergy, Fikadu Worede, Jelena Curic, Cesar Augusto P. Alves, Savvas Andronikou
    Pediatric Neurology 2024 152
  • MRI in LARS1 deficiency—Spectrum, patterns, and correlation with acute neurological deterioration
    Nicole Hammann, Dominic Lenz, Alyssa Bianzano, Ralf A. Husain, Eva Forman, Jonathan A. Bernstein, Tal Dattner, Marc Engelen, Andrea K. Hanson‐Kahn, Bertrand Isidor, Urania Kotzaeridou, Anna Tietze, Regina Trollmann, Claudia Weiß, Bruce H. R. Wolffenbuttel, Stefan Kölker, Georg F. Hoffmann, Ellen Crushell, Christian Staufner, Alexander Mohr, Inga Harting
    Journal of Inherited Metabolic Disease 2024 47 5
  • Superficial small cerebellar infarcts in cerebral amyloid angiopathy on 3 T MRI: A preliminary study
    Yuichiro Ii, Hidehiro Ishikawa, Akisato Nishigaki, Takaya Utsunomiya, Naoko Nakamura, Yoshinori Hirata, Hirofumi Matsuyama, Hiroyuki Kajikawa, Keita Matsuura, Kana Matsuda, Masaki Shinohara, Seiya Kishi, Ryota Kogue, Maki Umino, Masayuki Maeda, Hidekazu Tomimoto, Akihiro Shindo
    Journal of the Neurological Sciences 2024 459
  • Radiopaedia.org
    Laurens Cocker, Arlene Campos, Henry Knipe
    2020
  • Radiopaedia.org
    Alexandra Stanislavsky, Tariq Walizai, Rohit Sharma
    2012

More in this TOC Section

  • SyMRI & MR Fingerprinting in Brainstem Myelination
  • Comparison of Image Quality and Radiation Dose in Pediatric Temporal Bone CT Using Photon-Counting Detector CT and Energy-Integrating Detector CT
  • Dual-Layer Detector CT for PEDS Image Quality
Show more Pediatrics

Similar Articles

Advertisement

Indexed Content

  • Current Issue
  • Accepted Manuscripts
  • Article Preview
  • Past Issues
  • Editorials
  • Editor's Choice
  • Fellows' Journal Club
  • Letters to the Editor
  • Video Articles

Cases

  • Case Collection
  • Archive - Case of the Week
  • Archive - Case of the Month
  • Archive - Classic Case

More from AJNR

  • Trainee Corner
  • Imaging Protocols
  • MRI Safety Corner
  • Book Reviews

Multimedia

  • AJNR Podcasts
  • AJNR Scantastics

Resources

  • Turnaround Time
  • Submit a Manuscript
  • Submit a Video Article
  • Submit an eLetter to the Editor/Response
  • Manuscript Submission Guidelines
  • Statistical Tips
  • Fast Publishing of Accepted Manuscripts
  • Graphical Abstract Preparation
  • Imaging Protocol Submission
  • Evidence-Based Medicine Level Guide
  • Publishing Checklists
  • Author Policies
  • Become a Reviewer/Academy of Reviewers
  • News and Updates

About Us

  • About AJNR
  • Editorial Board
  • Editorial Board Alumni
  • Alerts
  • Permissions
  • Not an AJNR Subscriber? Join Now
  • Advertise with Us
  • Librarian Resources
  • Feedback
  • Terms and Conditions
  • AJNR Editorial Board Alumni

American Society of Neuroradiology

  • Not an ASNR Member? Join Now

© 2025 by the American Society of Neuroradiology All rights, including for text and data mining, AI training, and similar technologies, are reserved.
Print ISSN: 0195-6108 Online ISSN: 1936-959X

Powered by HighWire
