Research ArticleHead & Neck

Prevalence of Internal Auditory Canal Diverticulum and Its Association with Hearing Loss and Otosclerosis

K.J. Pippin, T.J. Muelleman, J. Hill, J. Leever, H. Staecker and L.N. Ledbetter
American Journal of Neuroradiology November 2017, 38 (11) 2167-2171; DOI: https://doi.org/10.3174/ajnr.A5399
K.J. Pippin
aFrom the Departments of Radiology (K.J.P, J.H., J.L., L.N.L.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for K.J. Pippin
T.J. Muelleman
bOtolaryngology (T.J.M., H.S.), University of Kansas Medical Center, Kansas City, Kansas.
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for T.J. Muelleman
J. Hill
aFrom the Departments of Radiology (K.J.P, J.H., J.L., L.N.L.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for J. Hill
J. Leever
aFrom the Departments of Radiology (K.J.P, J.H., J.L., L.N.L.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for J. Leever
H. Staecker
bOtolaryngology (T.J.M., H.S.), University of Kansas Medical Center, Kansas City, Kansas.
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for H. Staecker
L.N. Ledbetter
aFrom the Departments of Radiology (K.J.P, J.H., J.L., L.N.L.)
  • Find this author on Google Scholar
  • Find this author on PubMed
  • Search for this author on this site
  • ORCID record for L.N. Ledbetter
  • Article
  • Figures & Data
  • Info & Metrics
  • Responses
  • References
  • PDF
Loading

Abstract

BACKGROUND AND PURPOSE: Focal low-attenuation outpouching or diverticulum at the anterolateral internal auditory canal is an uncommon finding on CT of the temporal bone. This finding has been described as cavitary otosclerosis in small case reports and histology series. The purpose of this study was to establish the prevalence of internal auditory canal diverticulum and its association with classic imaging findings of otosclerosis and/or hearing loss.

MATERIALS AND METHODS: Temporal bone CT scans of 807 patients, obtained between January 2013 and January 2016, were retrospectively reviewed to identify internal auditory canal diverticula and/or classic imaging findings of otosclerosis. Clinical evaluations for hearing loss were reviewed for patients with internal auditory canal diverticula and/or otosclerosis.

RESULTS: Internal auditory canal diverticula were found in 43 patients (5%); classic otosclerosis, in 39 patients (5%); and both findings, in 7 patients (1%). Most temporal bones with only findings of internal auditory canal diverticula (91%) demonstrated hearing loss, with 63% of this group demonstrating sensorineural hearing loss. The hearing loss classification distribution was significantly different (P < .01) from that in the classic otosclerosis group and in the group with both diverticula and otosclerosis.

CONCLUSIONS: Internal auditory canal diverticula are not uncommon on CT examinations of the temporal bone and most commonly occur without classic imaging findings of otosclerosis. These lesions are associated with sensorineural hearing loss, and referral for hearing evaluation may be appropriate when present.

ABBREVIATIONS:

CHL
conductive hearing loss
IAC
internal auditory canal
SNHL
sensorineural hearing loss

A focal low-attenuation notch or diverticulum within the temporal bone continuous with the internal auditory canal (IAC) is an unusual finding on imaging studies of the temporal bone. Several histologic and imaging case reports refer to this finding as a form of cavitary otosclerosis1⇓⇓–4 and even suggest that the presence is associated with advanced disease.3

Otosclerosis is an osteodystrophic disorder of the otic capsule, resulting in abnormal resorption of endochondral bone and deposition of abnormal vascular bone. Otosclerosis usually appears in the third-to-fifth decades of life, and most commonly affects women. Clinical otosclerosis is present in <1% of the population, though it has been reported in up to 11% of the population on histology performed at postmortem examination.5 On CT of the temporal bone, otosclerosis commonly appears as lucent or hypodense bone surrounding the otic capsule, often limited to the region anterior to the oval window. This process results in either conductive hearing loss (CHL) due to fixation of the stapes footplate or mixed conductive and sensorineural hearing loss (SNHL) due concomitant otic capsule involvement. Otosclerosis presenting with only SNHL in the absence of CHL is rare and is often called “cochlear otosclerosis.”5⇓⇓⇓–9

Establishing the significance of the IAC diverticulum or notch is important for both the radiologist and referring physician in guiding clinical management. Determining the relationship of this lesion to classic imaging findings of otosclerosis could also be helpful in the understanding of otosclerosis and the spectrum of clinical presentations. Therefore, the purpose of this study was the following: 1) to determine the prevalence of IAC diverticula at our institution, and 2) to explore potential associations with otosclerosis and hearing loss in patients identified with an IAC diverticulum.

Materials and Methods

Study Design

This study was approved by the institutional review board and was compliant with the Health Insurance Portability and Accountability Act. A radiology data base was searched for all temporal bone CT examinations performed between January 1, 2013, and January 31, 2016. Exclusion criteria included age younger than 18 years or a prior operation that altered the IAC. Eligible temporal bone CT examinations were retrospectively reviewed by a neuroradiologist (L.N.L.) with 4 years of experience and a Certificate of Added Qualification in neuroradiology. Electronic medical review was performed for patient demographics, otologic history, clinical examination findings, and audiometric evaluation.

Imaging Review

Most imaging examinations were dedicated CTs of the temporal bones performed on a 64-section multidetector CT scanner (LightSpeed VCT; GE Healthcare; Milwaukee, Wisconsin). Protocol parameters included helical acquisition with 120 kV(peak), maximum of 320 mA, and a 0.5 pitch extending from just above the petrous ridge through the skull base. Images of each temporal bone were reformatted at 0.625-mm section thickness without a gap with a 100-mm FOV and 512 × 512 matrix. Standard axial and coronal reformations were reviewed for each temporal bone.

Images were reviewed for the presence of IAC diverticula or classic imaging findings of otosclerosis. An IAC diverticulum was defined as a nonvascular, low-density outpouching from the normal linear contour of the wall of the IAC, identified on both axial and standard coronal reformatted images. No minimum size threshold was used for the diagnosis of diverticulum. Classic imaging otosclerosis was defined as “fenestral” if abnormal lucent bone was anterior to the oval window, “cochlear” if the lucent bone surrounded the cochlea, or a combination of both locations. All findings were described as bilateral or unilateral.

Hearing Review

Association of imaging findings of IAC diverticula and classic imaging otosclerosis with hearing loss was evaluated by review of available clinical and audiometric evaluations. Patients with available clinical data were divided into 4 categories: no hearing loss, conductive hearing loss, sensorineural hearing loss, or mixed hearing loss, based on detailed otolaryngology review. The degree of pure SNHL was determined by the pure tone average, which is the average of the pure tone thresholds in decibels obtained at 4 selected frequencies and is a measure of the severity of hearing loss.10 The 4-frequency pure tone average in our study was reported with 0.5, 1, 2, and 3 kHz. Audiograms for patients who had undergone prior temporal bone surgery were excluded from hearing analysis to eliminate confounding alterations in hearing loss related to the operation.

Statistical Analysis

The prevalence of findings in the study population and associations between hearing groups were evaluated with Wilcoxon rank sum, Kruskal-Wallis, Fisher exact, and χ2 analyses performed with SAS software, Version 9.4 (SAS Institute, Cary, North Carolina). A P value of < .05 was used to determine statistical significance.

Results

A total of 810 eligible temporal bone CT examinations were identified during the 3-year study period. Three studies were excluded because of nondiagnostic images due to motion or artifacts. Patient demographics are described in Table 1. Of the 807 patients included in the study, IAC diverticulum was identified in 5% (n = 43) of examinations. The appearance ranged from a small notch to full outpouching, with all diverticula located along the anterior IAC medial to the cochlea (Fig 1). Sixty percent of patients (n = 26) demonstrated bilateral diverticula. Classic imaging findings of otosclerosis were also present in 5% (n = 39) of patients. Sixty-nine percent of patients with classic imaging findings of otosclerosis (n = 27) demonstrated bilateral findings. One percent (n = 7) of all eligible patients demonstrated imaging findings of both otosclerosis and IAC diverticula with 71% (n = 5) of this group demonstrating bilateral otosclerosis and IAC diverticula (Fig 2). Demographics of patients with IAC diverticula, both with and without otosclerosis, are described in Table 2.

View this table:
  • View inline
  • View popup
Table 1:

Demographic characteristics for total study population

Fig 1.
  • Download figure
  • Open in new tab
  • Download powerpoint
Fig 1.

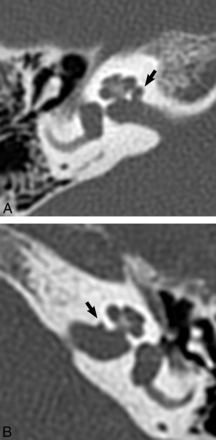

IAC diverticula on temporal bone CT. A, CT of the right temporal bone in a 41-year-old woman with vertigo. A CSF-density saccular outpouching of the anterior IAC medial to the cochlea is compatible with an IAC diverticulum (black arrow). B, CT of the left temporal bone in a 67-year-old woman undergoing evaluation of SNHL. A smaller diverticulum or notch is present along the anterior IAC in a location similar to that of the larger diverticula in A (black arrow).

Fig 2.
  • Download figure
  • Open in new tab
  • Download powerpoint
Fig 2.

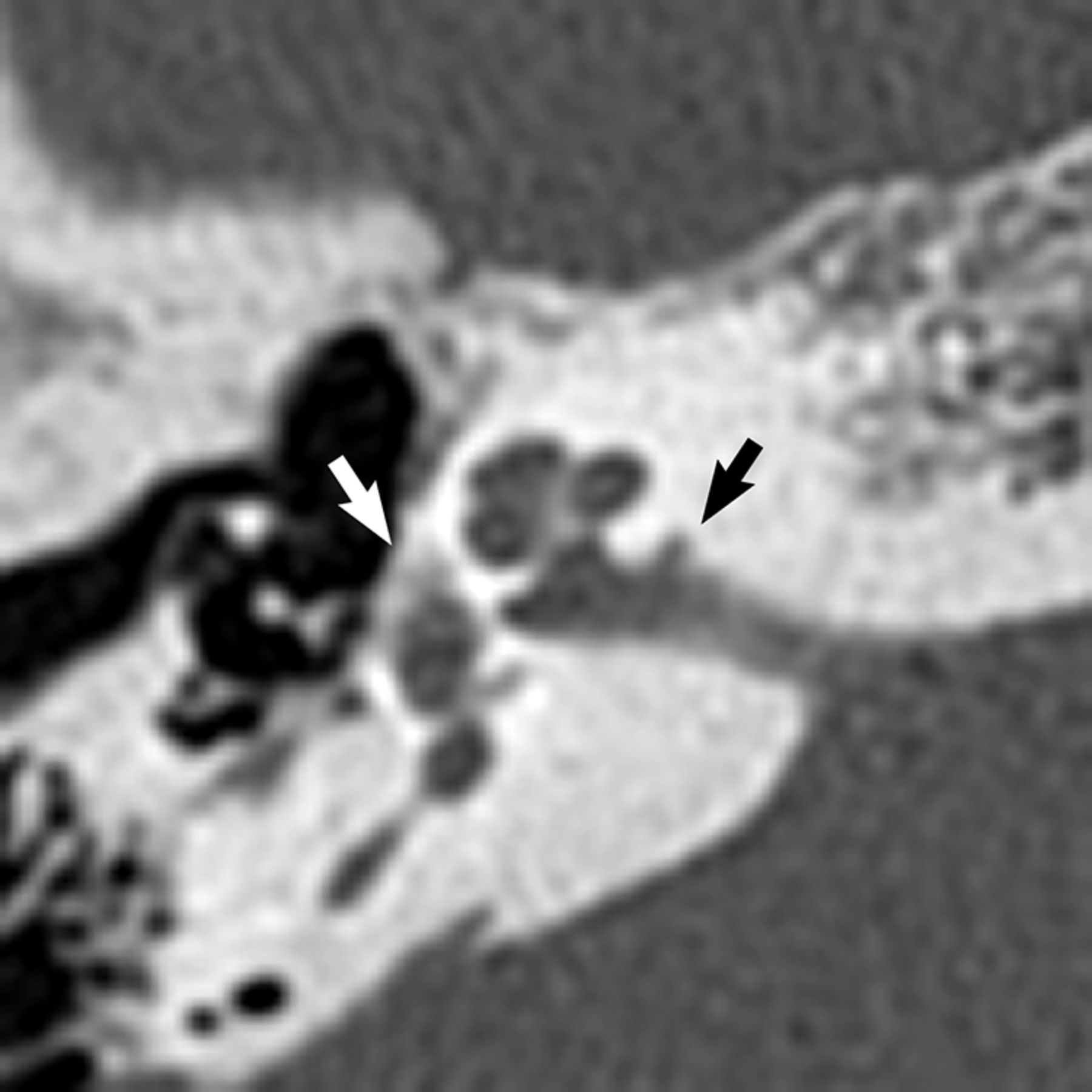

IAC diverticulum with classic imaging findings of otosclerosis on temporal bone CT in a 34-year-old woman evaluated for mixed hearing loss. There is a small IAC diverticulum along the anterior IAC (black arrow) with focal lucency of the otic capsule adjacent to the anterior oval window near the fissula ante fenestram (white arrow).

View this table:
  • View inline
  • View popup
Table 2:

Demographic characteristics by the presence of IAC or otosclerosis

Seventy-five of 807 patients (n = 123 temporal bones) demonstrated findings of IAC diverticula, otosclerosis, or both and were further evaluated for hearing loss. These individual temporal bones were divided into 3 groups: IAC diverticulum only, otosclerosis only, and both IAC diverticulum and otosclerosis (Table 3).

View this table:
  • View inline
  • View popup
Table 3:

Associations between IAC diverticulum or otosclerosis and hearing loss

In the IAC diverticulum-only group, there were 36 patients with 57 affected temporal bones. Audiogram results were unavailable or excluded due to a prior operation for 14 temporal bones in this group. Of the 43 temporal bones with only an IAC diverticulum and hearing evaluation, 9% (n = 4) demonstrated no hearing loss, 63% (n = 27) demonstrated SNHL, and 28% (n = 12) demonstrated a mixed hearing loss. No temporal bones in this group demonstrated CHL.

In the classic otosclerosis-only group, there were 33 patients with 54 affected temporal bones. Most (81%, n = 44) temporal bones had fenestral otosclerosis only, while 4% (n = 2) had cochlear otosclerosis only and 15% (n = 8) had both fenestral and cochlear otosclerosis. Audiogram results were unavailable or excluded for 15 temporal bones in this group. A total of 18% (n = 7) demonstrated no hearing loss, 26% (n = 10) demonstrated SNHL, 23% (n = 9) demonstrated a mixed hearing loss, and 33% (n = 13) demonstrated CHL.

In the IAC diverticulum and otosclerosis group, there were 7 patients with 12 affected temporal bones. Fenestral otosclerosis was present in all 12 temporal bones, with 3 temporal bones demonstrating concomitant cochlear otosclerosis. Audiogram results were unavailable or excluded for 5 temporal bones in this group. A total of 14% (n = 1) demonstrated no hearing loss, 29% (n = 2) demonstrated SNHL, 43% (n = 3) demonstrated a mixed hearing loss, and 14% (n = 1) demonstrated CHL.

Comparison of the 3 groups demonstrated a statistically significant difference in hearing loss patterns between each group. These findings suggest that SNHL is more commonly associated with IAC diverticulum than with traditional imaging findings of otosclerosis.

Discussion

The prevalence and clinical significance of IAC diverticula are not well-established in the current literature. In this large retrospective case review, IAC diverticula were present in 5% of our study population and more frequent (n = 43) than classic findings of otosclerosis (n = 39). The appearance of diverticula varied from a small notch to a larger outpouching and was always located at the anterior IAC near the medial margin of the dense otic capsule. IAC diverticula were more commonly an isolated finding and rarely occurred with concurrent classic findings of otosclerosis. Compared with patients with isolated otosclerosis (median age, 52 years), patients with IAC diverticula were significantly older at median ages of 62 years with additional findings of otosclerosis and 61 years without additional findings of otosclerosis (P < .01).

Most (91%) patients with an isolated IAC diverticulum without additional imaging evidence of otosclerosis had hearing loss with more than half (63%) demonstrating pure SNHL. The pattern of hearing loss in isolated IAC diverticula was also found to be significantly different from hearing loss patterns in the classic imaging appearance of otosclerosis with or without an additional finding of an IAC diverticulum. These findings suggest that IAC diverticula are a clinically important finding on temporal bone CT and have important hearing loss implications.

Audiometric data demonstrated more advanced hearing loss in patients with isolated IAC diverticula than previously reported with presbycusis or age-related hearing loss. Presbycusis or age-related hearing loss is defined as SNHL caused by the aging process without a confounding etiology, such as metabolic disorder, trauma, or noise injury.10 Presbycusis may play a partial role in SNHL in the diverticula group, given that the median age of the diverticula-only group was 61 years. However, the average pure tone average was 53.5 dB in the 27 temporal bones with isolated IAC diverticula, which is consistent with moderate-to-moderate-severe hearing loss and was greater than expected with presbycusis alone.10,11 Moreover, the average pure tone average in the 27 isolated diverticula with SNHL was like that in the 10 temporal bones with isolated imaging findings of otosclerosis presenting with SNHL (55.3 dB). Therefore, the degree of SNHL in temporal bones with diverticula was higher than expected for age-related hearing loss and like that in temporal bones with accepted inner ear pathology.

IAC diverticula are described in small case reports as rare entities reflective of cavitary otosclerosis.1⇓⇓–4 Beyond the hearing loss implications of cavitary otosclerosis, Makarem et al2 also described the clinical significance of the lesion for potential cochlear implant malpositioning into the diverticulum. The consistent location of all diverticula in this series along the anterior IAC matches that in prior temporal bone histology series descriptions of cavitary otosclerosis.12,13 The occurrence of outpouching or notches was like classic CT findings of otosclerosis in this study, both groups representing 5% of all patients. Therefore, the prevalence of IAC diverticula is likely not as rare as previously implied. Moreover, the findings in this series do not support previous reporting of an IAC diverticulum as a manifestation of severe otosclerosis3 due to its high frequency as an isolated finding and the occurrence of the lesion in patients without hearing loss. Previous case reports do not directly address the significance of IAC diverticula as an isolated finding without additional classic CT findings of otosclerosis. This study suggests that isolated IAC diverticula are related to hearing loss in a different pattern than the classic CT presentation of otosclerosis.

Classic otosclerosis invariably involves the anterior stapes footplate near the fissula ante fenestram and presents with a component of CHL.5,14 SNHL in otosclerosis is less well-understood and may be due to production of local inflammatory cytokines leading to atrophy and concomitant dysfunction of the spiral ligament.15,16 SNHL is usually present with CHL and manifests as a mixed hearing loss classification. Temporal bones in this study that had classic imaging findings of otosclerosis more commonly presented with CHL, and temporal bones with both classic imaging findings of otosclerosis plus diverticula more commonly presented with mixed hearing loss as expected. No hearing loss was identified in 7 temporal bones with findings of otosclerosis (18% of temporal bones with otosclerosis). These temporal bones had imaging indications for otosclerosis or hearing loss with a unilateral clinical presentation of hearing loss and bilateral imaging findings. Otosclerosis presenting with isolated SNHL without a conductive component is believed to be rare and not well-understood.5,17⇓–19 IAC diverticula may represent an imaging manifestation of otosclerosis with an isolated SNHL, because most patients with diverticula in this study presented with isolated SNHL (63%). A smaller portion of isolated IAC diverticula demonstrated a mixed pattern of hearing loss (28%). These IAC diverticula may result in not only SNHL due to spiral ligament dysfunction but also CHL due to abutment to the scala vestibuli, resulting in a third-window phenomenon.2,4,16,20 Another potential explanation of mixed hearing loss with CT findings of isolated diverticula may be otosclerosis involvement of the footplate below the resolution of routine CT temporal bone examinations.

There were several limitations to this study. Its retrospective nature limited the information available for review. Namely, clinical data were not available for all patients with IAC diverticula or classic otosclerosis. Small sample sizes, especially in the combined IAC diverticula and otosclerosis group, limited statistical analysis for comparing grouped populations of CT findings. This study also had a component of selection bias that may have overestimated the prevalence of findings on CT due to referral patterns. MR images of the temporal bone were also not reviewed in this study, despite MR imaging being a frequently ordered examination to evaluate SNHL. With most patients with IAC diverticula demonstrating SNHL, the actual prevalence of IAC diverticula may have been higher on high-resolution MR imaging compared with CT.

The relationship of the anterior internal auditory canal wall to the development of a diverticulum or focal otosclerosis is unclear. The IAC diverticulum may be occasionally present in classic otosclerosis early in the disease process when other changes are too subtle to be detected on imaging. An additional consideration is that the IAC diverticulum represents a variant of cochlear otosclerosis with the nidus for resorption of endochondral bone near the junction of endochondral bone of the medial otic capsule and lamellated bone of the IAC, as opposed to the more common location of the fissula ante fenestram. In this situation, the diverticula could potentially represent advanced spongiotic bone immediately adjacent to IAC CSF. Hounsfield unit values were not measured to evaluate quantitative density due to the small size of several of the diverticula, limiting accuracy. However, this lesion qualitatively appeared as a low, near-CSF density notch or outpouching in the bone cortex. IAC diverticula are also unlikely to be found in disease processes such as osteoporosis, Paget disease, or osteogenesis imperfecta given their frequency as a small isolated finding. It is also unlikely that an IAC diverticulum reflects a normal anatomic variant, given its association with hearing loss greater than expected for age. While this study cannot determine the etiology of the diverticulum, this lesion does demonstrate a relationship with hearing loss and, most commonly, SNHL.

The results of this study illustrate the clinical importance of identification of IAC diverticula due their association with hearing loss, and radiologists should be aware of this entity. If identified on imaging, otolaryngology consultation and audiometric evaluation should be considered if not previously performed. IAC diverticula can be identified not uncommonly on temporal bone CT and should be mentioned in the radiology report, given their association with hearing loss.

Conclusions

IAC diverticula are focal CSF attenuation outpouchings at the anterolateral internal auditory canal, present on 5% of CT examinations of the temporal bone in our study population. IAC diverticula are most commonly isolated findings and are associated with a different pattern of hearing loss compared with classic findings of otosclerosis. Identification of this clinically significant finding on CT may warrant audiometric evaluation, given the association with hearing loss, specifically SNHL.

Acknowledgments

We thank Suzanne Hunt and Yu Wang for assistance with the statistical review of the data.

Footnotes

  • Disclosures: Hinrich Staecker—UNRELATED: Grants/Grants Pending: National Institute on Deafness and Other Communication Disorders.* Luke N. Ledbetter—UNRELATED: Royalties: Elsevier, Comments: royalties for book chapters in Diagnostic Imaging: Head and Neck. 3rd ed. *Money paid to the institution.

  • Paper previously presented at: Annual Meeting of the American Society of Head and Neck Radiology, September 7–11, 2016; Washington, DC.

References

  1. 1.↵
    1. Makarem AO,
    2. Linthicum FH
    . Cavitating otosclerosis. Otol Neurotol 2008;29:730–31 doi:10.1097/MAO.0b013e3181799763 pmid:18520624
    CrossRefPubMed
  2. 2.↵
    1. Makarem AO,
    2. Hoang TA,
    3. Lo WW, et al
    . Cavitating otosclerosis: clinical, radiologic, and histopathologic correlations. Otol Neurotol 2010;31:381–84 doi:10.1097/MAO.0b013e3181d275e8 pmid:20195188
    CrossRefPubMed
  3. 3.↵
    1. Hoeberigs M,
    2. Postma A,
    3. Waterval J, et al
    . Prevalence of anterior internal auditory canal “diverticulum” on high resolution CT in patients with otosclerosis. In: Proceedings of the Radiological Society of North America 2012 Scientific Assembly and Annual Meeting, Chicago, Illinois. November 25–30, 2012. http://archive.rsna.org/2012/12029990.html. Accessed August 8, 2016.
  4. 4.↵
    1. Bou-Assaly W,
    2. Mukherji S,
    3. Srinivasan A
    . Bilateral cavitary otosclerosis: a rare presentation of otosclerosis and cause of hearing loss. Clin Imaging 2013;37:1116–18 doi:10.1016/j.clinimag.2013.07.007 pmid:24050941
    CrossRefPubMed
  5. 5.↵
    1. Chole RA,
    2. McKenna M
    . Pathophysiology of otosclerosis. Otol Neurotol 2001;22:249–57 doi:10.1097/00129492-200103000-00023 pmid:11300278
    CrossRefPubMed
  6. 6.↵
    1. Schuknecht HF,
    2. Kirchner JC
    . Cochlear otosclerosis: fact or fantasy. Laryngoscope 1974;84:766–82 doi:10.1288/00005537-197405000-00008 pmid:4827586
    CrossRefPubMed
  7. 7.↵
    1. Schuknecht HF
    . Cochlear otosclerosis: a continuing fantasy. Arch Otorhinolaryngol 1979;222:79–84 doi:10.1007/BF00469744 pmid:435168
    CrossRefPubMed
  8. 8.↵
    1. Nelson EG,
    2. Hinojosa R
    . Questioning the relationship between cochlear otosclerosis and sensorineural hearing loss: a quantitative evaluation of cochlear structures in cases of otosclerosis and review of the literature. Laryngoscope 2004;114:1214–30 doi:10.1097/00005537-200407000-00016 pmid:15235351
    CrossRefPubMed
  9. 9.↵
    1. Hayashi H,
    2. Onerci O,
    3. Paparella MM
    . Cochlear otosclerosis. Otol Neurotol 2006;27:905–06 doi:10.1097/01.mao.0000227901.65409.b1 pmid:16885782
    CrossRefPubMed
  10. 10.↵
    1. Flint PW,
    2. Haughey BH,
    3. Lund VJ
    . Cummings Otolaryngology: Head and Neck Surgery, 3-volume set. 6th ed. London: Saunders; 2014
  11. 11.↵
    1. Wiley TL,
    2. Chappell R,
    3. Carmichael L, et al
    . Changes in hearing thresholds over 10 years in older adults. J Am Acad Audiol 2008;19:281–92; quiz 371 doi:10.3766/jaaa.19.4.2 pmid:18795468
    CrossRefPubMed
  12. 12.↵
    1. Hueb M,
    2. Goycoolea M,
    3. Paparella M, et al
    . Otosclerosis: the University of Minnesota temporal bone collection. Otolaryngol Head Neck Surg 1991;105:396–405 doi:10.1177/019459989110500308 pmid:1945425
    CrossRefPubMed
  13. 13.↵
    1. Schuknecht HF,
    2. Barber W
    . Histologic variants in otosclerosis. Laryngoscope 1985;95:1307–17 pmid:4058207
    PubMed
  14. 14.↵
    1. Rudic M,
    2. Keogh I,
    3. Wagner R, et al
    . The pathophysiology of otosclerosis: review of current research. Hearing Res 2015;330(pt A):51–56 doi:10.1016/j.heares.2015.07.014 pmid:26276418
    CrossRefPubMed
  15. 15.↵
    1. Adams J
    . Clinical implications of inflammatory cytokines in the cochlea: a technical note. Otol Neurotol 2002;23:316–22 doi:10.1097/00129492-200205000-00015 pmid:11981388
    CrossRefPubMed
  16. 16.↵
    1. Merchant S,
    2. Nadol J,
    3. Schuknecht HF
    . Schuknecht's Pathology of the Ear. 3rd ed. Shelton, Connecticut: McGraw Hill Medical; 2010
  17. 17.↵
    1. Young IM,
    2. Mikaelian DO,
    3. Trocki IM
    . Sensorineural hearing level in unilateral otosclerosis. Otolaryngol Head Neck Surg 1979;87:486–90 doi:10.1177/019459987908700414 pmid:503510
    CrossRefPubMed
  18. 18.↵
    1. Virolainen E,
    2. Puhakka H,
    3. Rahko T
    . The cochlear component in operated otosclerosis after a mean period of 16 years: a follow-up study. Audiology 1980;19:101–04 doi:10.3109/00206098009072653 pmid:7352916
    CrossRefPubMed
  19. 19.↵
    1. Vincent R,
    2. Sperling NM,
    3. Oates J, et al
    . Surgical findings and long-term hearing results in 3,050 stapedotomies for primary otosclerosis: a prospective study with the otology-neurotology database. Otol Neurotol 2006;27(8 suppl 2):S25–47 doi:10.1097/01.mao.0000235311.80066.df pmid:16985478
    CrossRefPubMed
  20. 20.↵
    1. Richard C,
    2. Linthicum FH Jr.
    . An unexpected third window in a case of advanced cavitating otosclerosis. Otol Neurotol 2012;33:e47–48 doi:10.1097/MAO.0b013e318245cb3b pmid:22314921
    CrossRefPubMed
  • Received May 1, 2017.
  • Accepted after revision July 31, 2017.
  • © 2017 by American Journal of Neuroradiology
View Abstract
PreviousNext
Back to top

In this issue

American Journal of Neuroradiology: 38 (11)
American Journal of Neuroradiology
Vol. 38, Issue 11
1 Nov 2017
  • Table of Contents
  • Index by author
  • Complete Issue (PDF)
Advertisement
Print
Download PDF
Email Article

Thank you for your interest in spreading the word on American Journal of Neuroradiology.

NOTE: We only request your email address so that the person you are recommending the page to knows that you wanted them to see it, and that it is not junk mail. We do not capture any email address.

Enter multiple addresses on separate lines or separate them with commas.
Prevalence of Internal Auditory Canal Diverticulum and Its Association with Hearing Loss and Otosclerosis
(Your Name) has sent you a message from American Journal of Neuroradiology
(Your Name) thought you would like to see the American Journal of Neuroradiology web site.
CAPTCHA
This question is for testing whether or not you are a human visitor and to prevent automated spam submissions.
Cite this article
K.J. Pippin, T.J. Muelleman, J. Hill, J. Leever, H. Staecker, L.N. Ledbetter
Prevalence of Internal Auditory Canal Diverticulum and Its Association with Hearing Loss and Otosclerosis
American Journal of Neuroradiology Nov 2017, 38 (11) 2167-2171; DOI: 10.3174/ajnr.A5399

Citation Manager Formats

  • BibTeX
  • Bookends
  • EasyBib
  • EndNote (tagged)
  • EndNote 8 (xml)
  • Medlars
  • Mendeley
  • Papers
  • RefWorks Tagged
  • Ref Manager
  • RIS
  • Zotero
0 Responses
Respond to this article
Share
Bookmark this article
Prevalence of Internal Auditory Canal Diverticulum and Its Association with Hearing Loss and Otosclerosis
K.J. Pippin, T.J. Muelleman, J. Hill, J. Leever, H. Staecker, L.N. Ledbetter
American Journal of Neuroradiology Nov 2017, 38 (11) 2167-2171; DOI: 10.3174/ajnr.A5399
del.icio.us logo Twitter logo Facebook logo Mendeley logo
  • Tweet Widget
  • Facebook Like
  • Google Plus One
Purchase

Jump to section

  • Article
    • Abstract
    • ABBREVIATIONS:
    • Materials and Methods
    • Results
    • Discussion
    • Conclusions
    • Acknowledgments
    • Footnotes
    • References
  • Figures & Data
  • Info & Metrics
  • Responses
  • References
  • PDF

Related Articles

  • No related articles found.
  • PubMed
  • Google Scholar

Cited By...

  • Internal Auditory Canal Diverticula among Pediatric Patients: Prevalence and Assessment for Hearing Loss and Anatomic Associations
  • Isolated Internal Auditory Canal Diverticula: A Normal Anatomic Variant Not Associated with Sensorineural Hearing Loss
  • Cavitary Plaques in Otospongiosis: CT Findings and Clinical Implications
  • Crossref (22)
  • Google Scholar

This article has been cited by the following articles in journals that are participating in Crossref Cited-by Linking.

  • Cavitary Plaques in Otospongiosis: CT Findings and Clinical Implications
    P. Puac, A. Rodríguez, H.-C. Lin, V. Onofrj, F.-C. Lin, S.-C. Hung, C. Zamora, M. Castillo
    American Journal of Neuroradiology 2018 39 6
  • Third Window Lesions
    Mai-Lan Ho
    Neuroimaging Clinics of North America 2019 29 1
  • Otosclerosis and Dysplasias of the Temporal Bone
    Vanesa Carlota Andreu-Arasa, Edward K. Sung, Akifumi Fujita, Naoko Saito, Osamu Sakai
    Neuroimaging Clinics of North America 2019 29 1
  • Isolated Internal Auditory Canal Diverticula: A Normal Anatomic Variant Not Associated with Sensorineural Hearing Loss
    D.C. Mihal, Y. Feng, M.L. Kodet, C.M. Lohse, M.L Carlson, J.I. Lane
    American Journal of Neuroradiology 2018 39 12
  • “Third Window” and “Single Window” Effects Impede Surgical Success: Analysis of Retrofenestral Otosclerosis Involving the Internal Auditory Canal or Round Window
    Yun Jung Bae, Ye Ji Shim, Byung Se Choi, Jae-Hyoung Kim, Ja-Won Koo, Jae-Jin Song
    Journal of Clinical Medicine 2019 8 8
  • Temporal Bone Anatomy
    John C. Benson, John I. Lane
    Neuroimaging Clinics of North America 2022 32 4
  • Significance of internal auditory canal diverticula in ears with otosclerosis
    Fei Wang, Tadao Yoshida, Mariko Shimono, Satofumi Sugimoto, Masaaki Teranishi, Shinji Naganawa, Michihiko Sone
    Acta Oto-Laryngologica 2018 138 12
  • Brazilian Society of Otology task force – Otosclerosis: evaluation and treatment
    Vagner Antonio Rodrigues Silva, Henrique Furlan Pauna, Joel Lavinsky, Guilherme Corrêa Guimarães, Nicolau Moreira Abrahão, Eduardo Tanaka Massuda, Melissa Ferreira Vianna, Cláudio Márcio Yudi Ikino, Vanessa Mazanek Santos, José Fernando Polanski, Maurício Noschang Lopes da Silva, André Luiz Lopes Sampaio, Raul Vitor Rossi Zanini, Luiz Fernando Manzoni Lourençone, Mariana Moreira de Castro Denaro, Daniela Bortoloti Calil, Carlos Takahiro Chone, Arthur Menino Castilho
    Brazilian Journal of Otorhinolaryngology 2023 89 5
  • Review of Temporal Bone Microanatomy
    John C. Benson, Laurence Eckel, Julie Guerin, V. Michelle Silvera, Felix Diehn, Theodore Passe, Matthew L. Carlson, John I. Lane
    Clinical Neuroradiology 2020 30 2
  • The Size of Internal Auditory Canal Diverticula Is Unrelated to Degree of Hearing Loss
    Thomas J. Muelleman, Kaley Pippin, Matthew Shew, Mark Villwock, James Lin, Alicia M. Quesnel, Luke Ledbetter, Hinrich Staecker
    The Laryngoscope 2020 130 4

More in this TOC Section

  • Chondrosarcoma vs Synovial Chondromatosis: Imaging
  • WHO Classification Update: Nasal&Skull Base Tumors
  • Peritumoral Signal in Vestibular Schwannomas
Show more Head & Neck

Similar Articles

Advertisement

Indexed Content

  • Current Issue
  • Accepted Manuscripts
  • Article Preview
  • Past Issues
  • Editorials
  • Editor's Choice
  • Fellows' Journal Club
  • Letters to the Editor
  • Video Articles

Cases

  • Case Collection
  • Archive - Case of the Week
  • Archive - Case of the Month
  • Archive - Classic Case

More from AJNR

  • Trainee Corner
  • Imaging Protocols
  • MRI Safety Corner
  • Book Reviews

Multimedia

  • AJNR Podcasts
  • AJNR Scantastics

Resources

  • Turnaround Time
  • Submit a Manuscript
  • Submit a Video Article
  • Submit an eLetter to the Editor/Response
  • Manuscript Submission Guidelines
  • Statistical Tips
  • Fast Publishing of Accepted Manuscripts
  • Graphical Abstract Preparation
  • Imaging Protocol Submission
  • Evidence-Based Medicine Level Guide
  • Publishing Checklists
  • Author Policies
  • Become a Reviewer/Academy of Reviewers
  • News and Updates

About Us

  • About AJNR
  • Editorial Board
  • Editorial Board Alumni
  • Alerts
  • Permissions
  • Not an AJNR Subscriber? Join Now
  • Advertise with Us
  • Librarian Resources
  • Feedback
  • Terms and Conditions
  • AJNR Editorial Board Alumni

American Society of Neuroradiology

  • Not an ASNR Member? Join Now

© 2025 by the American Society of Neuroradiology All rights, including for text and data mining, AI training, and similar technologies, are reserved.
Print ISSN: 0195-6108 Online ISSN: 1936-959X

Powered by HighWire
